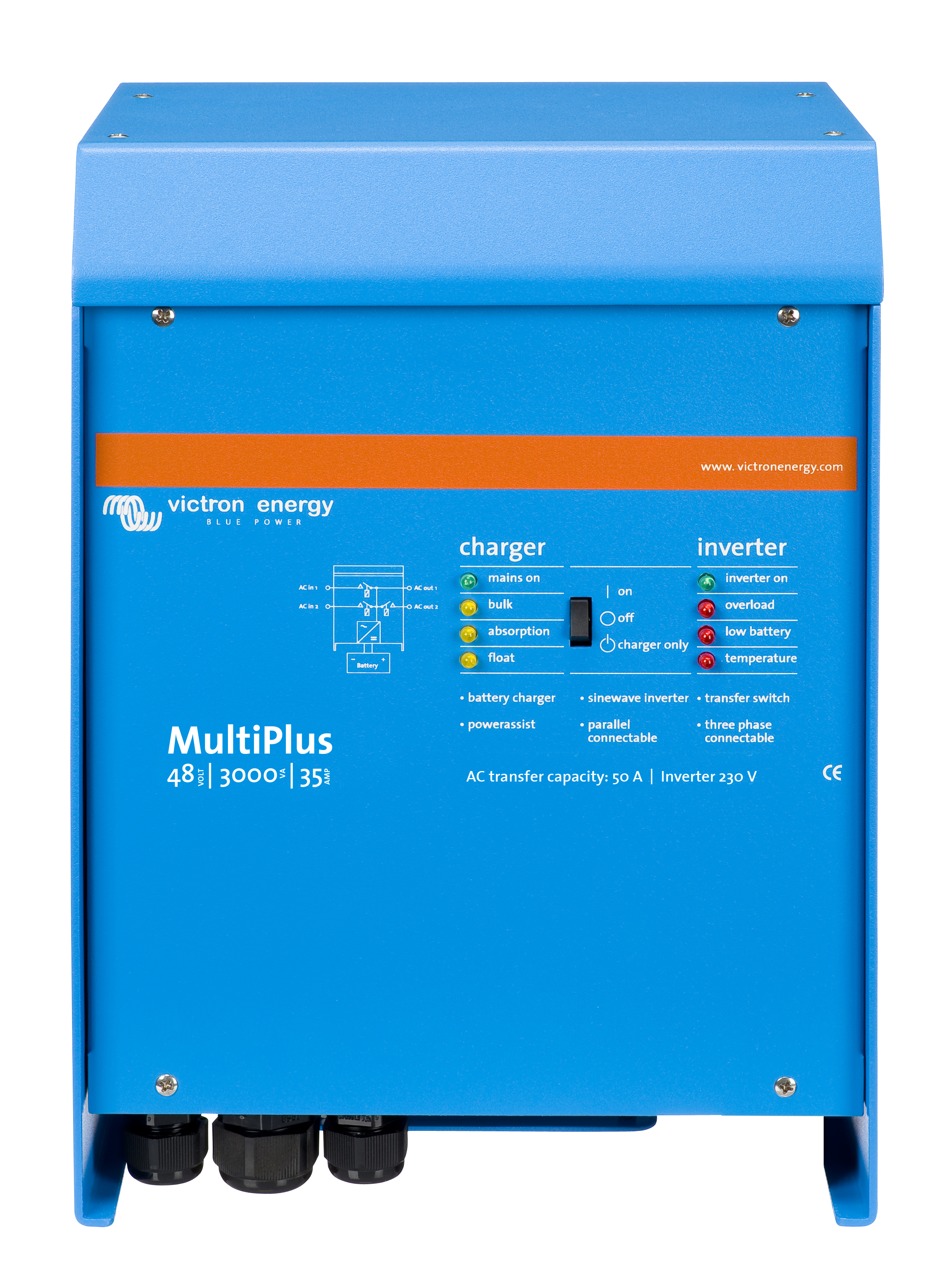

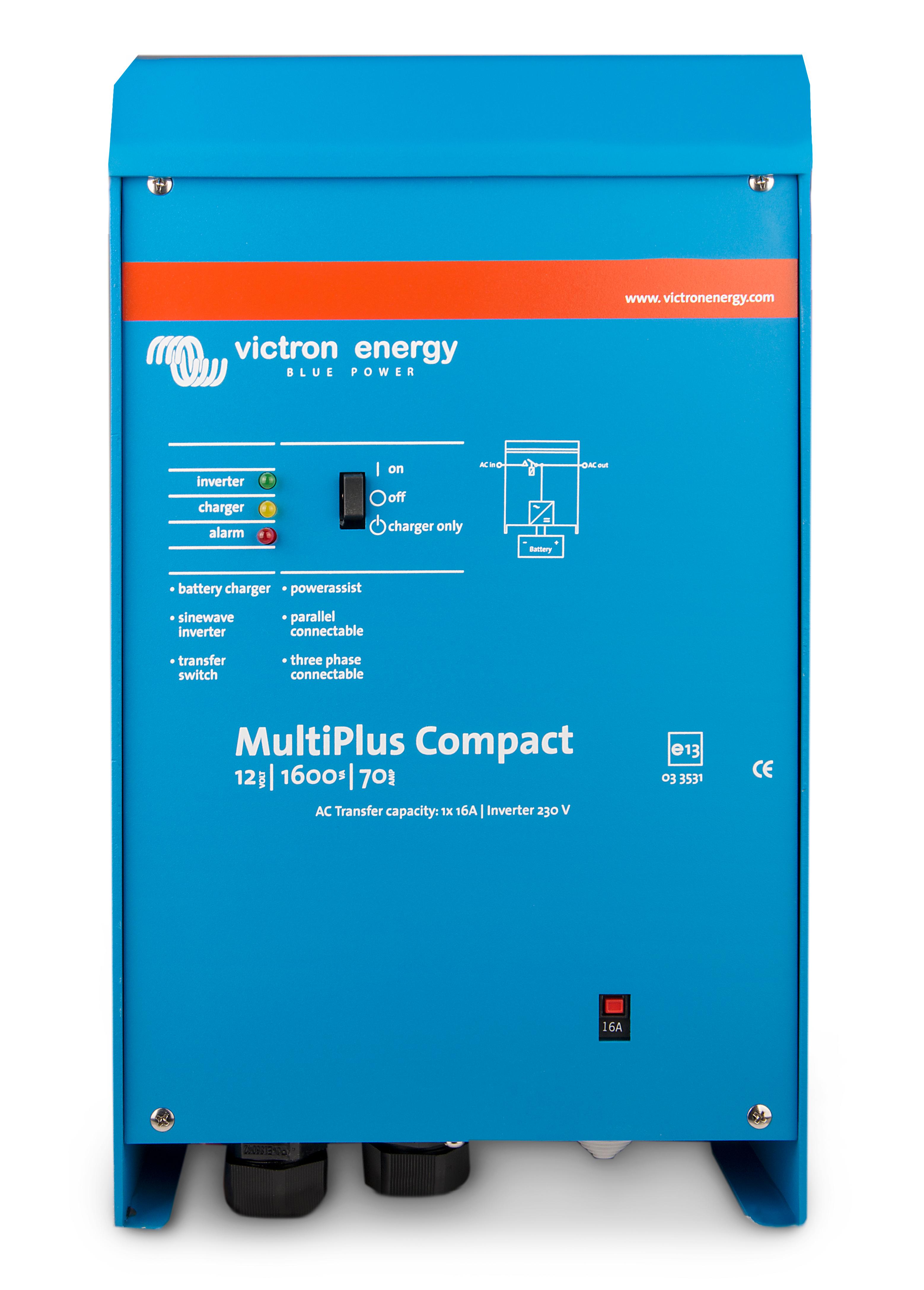

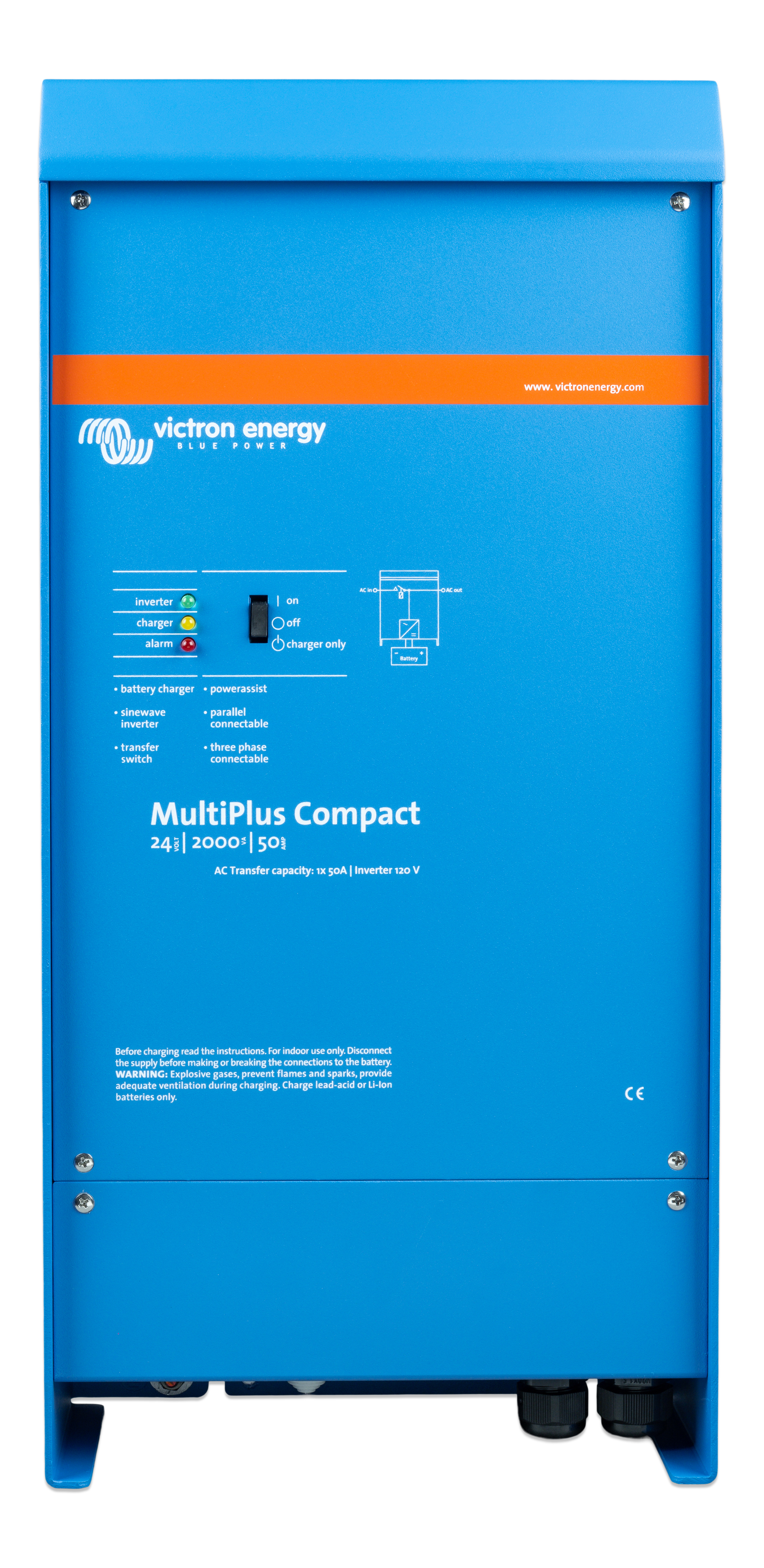

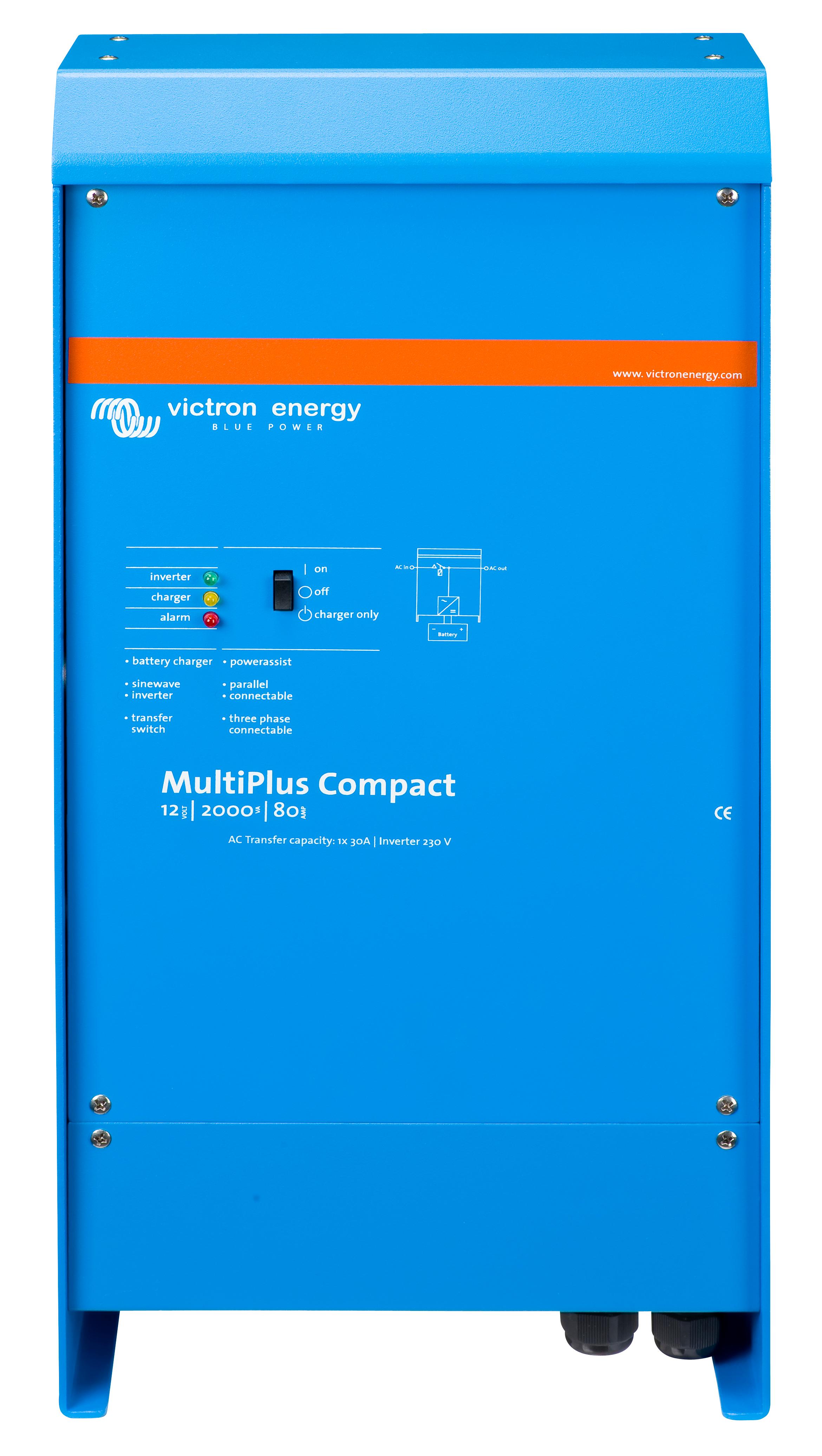

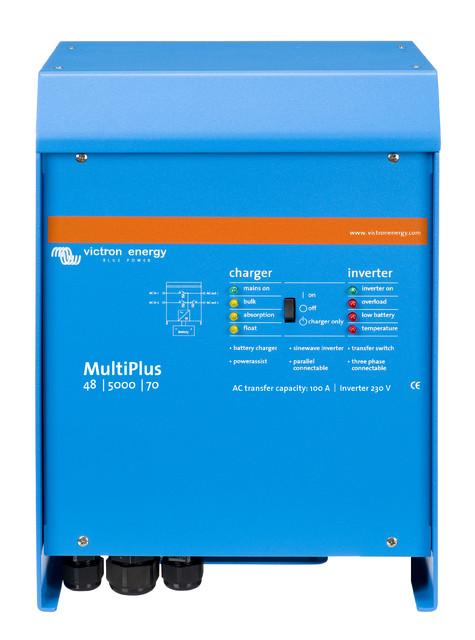

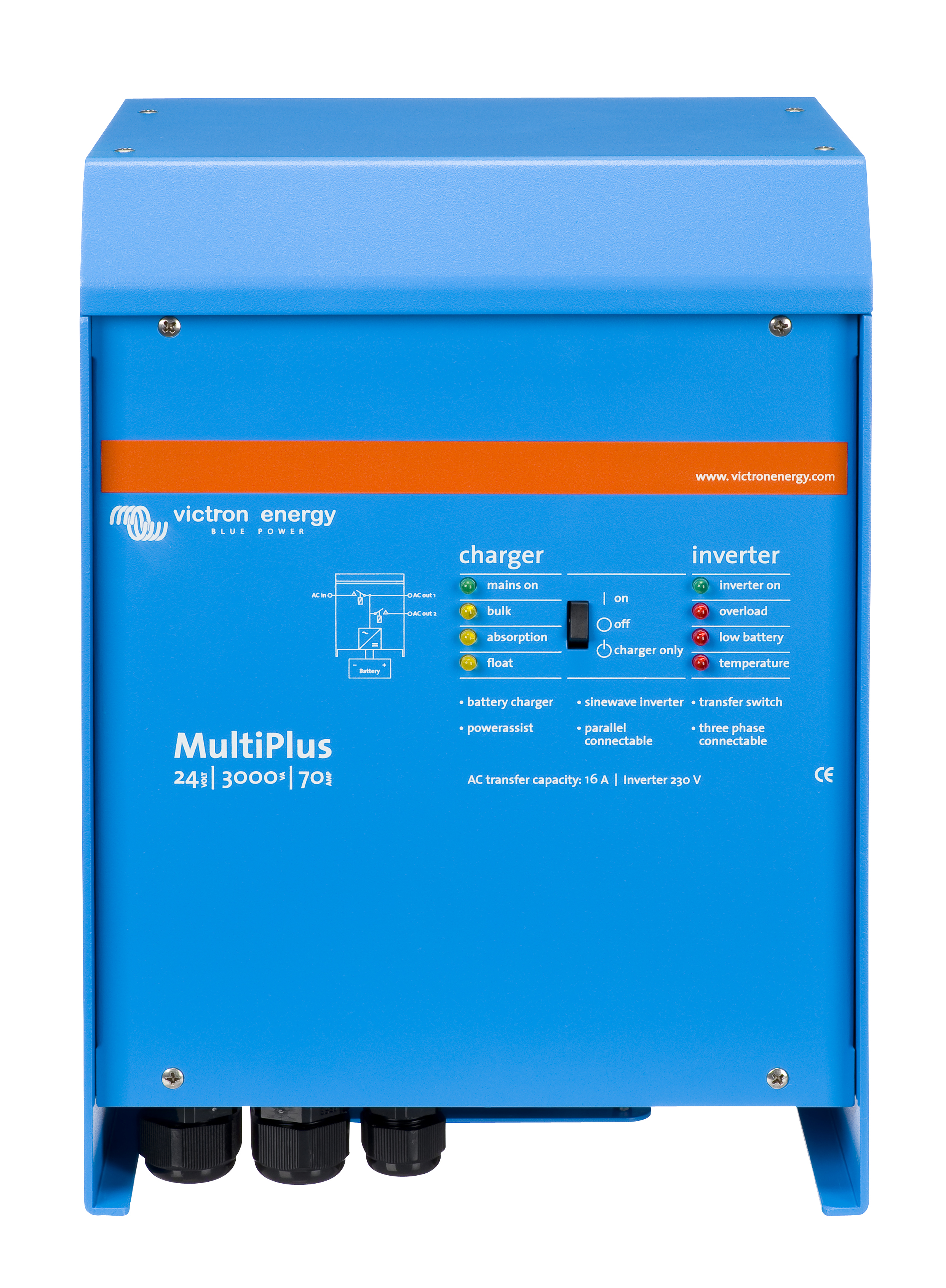

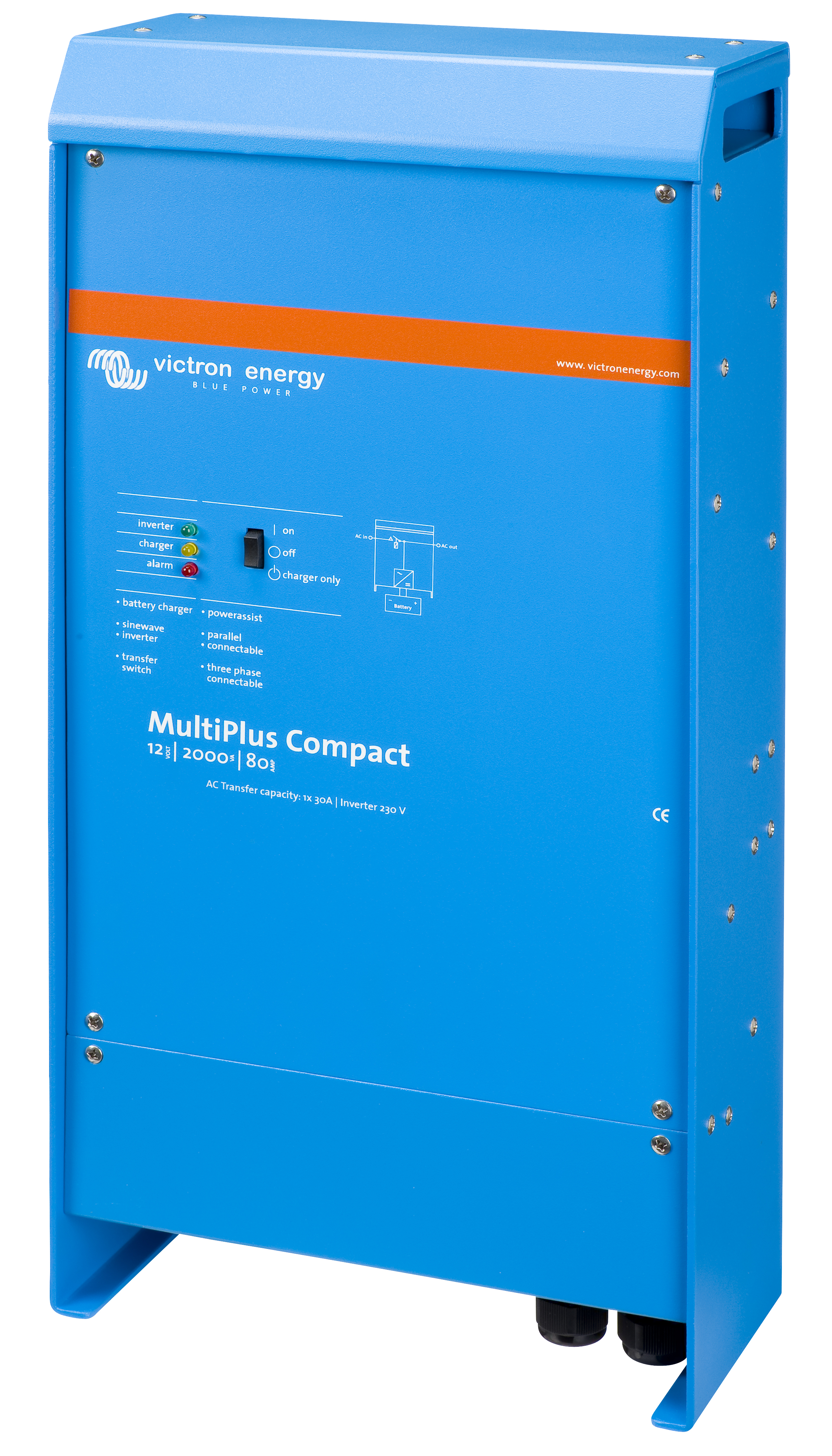

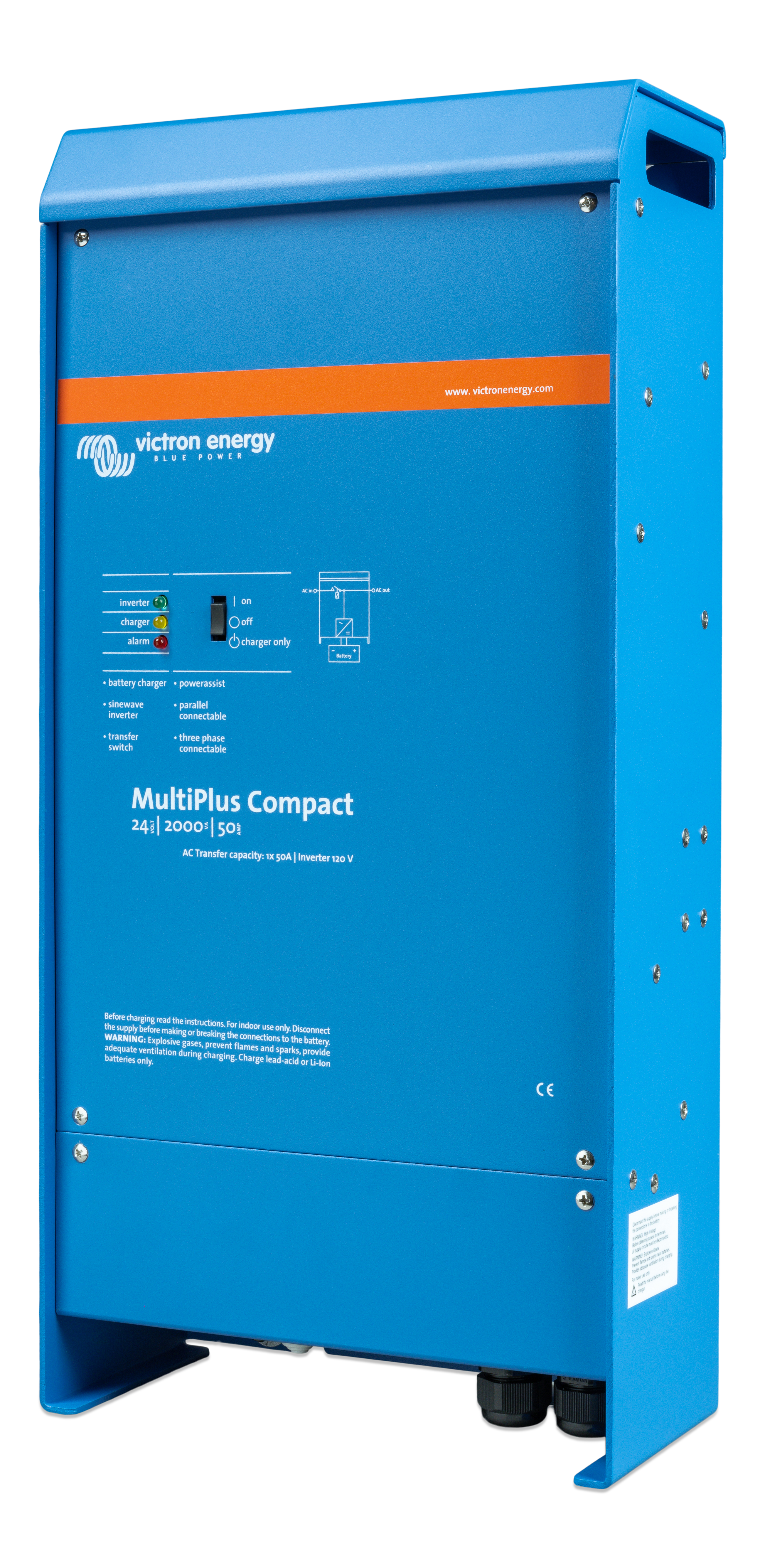

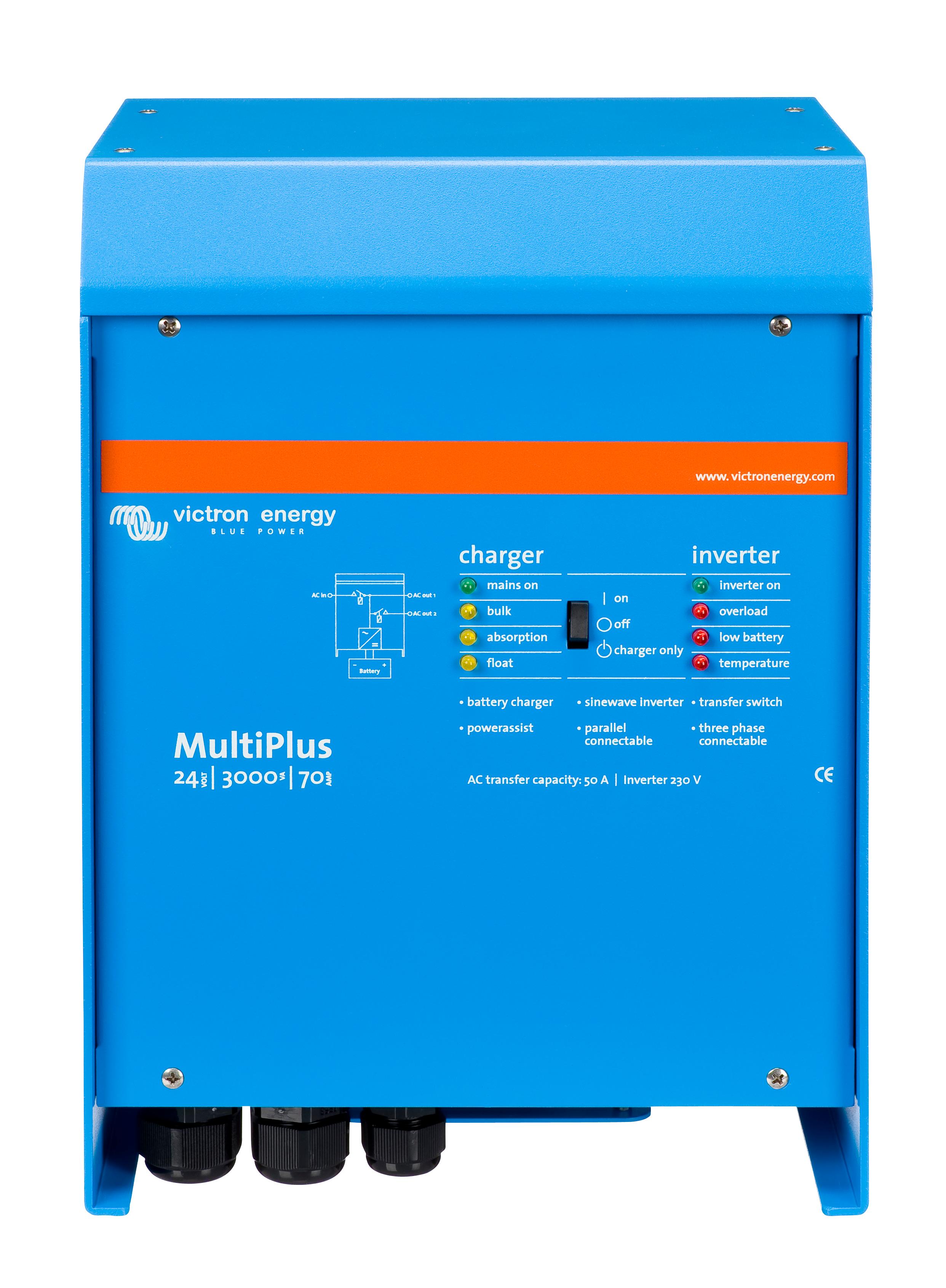

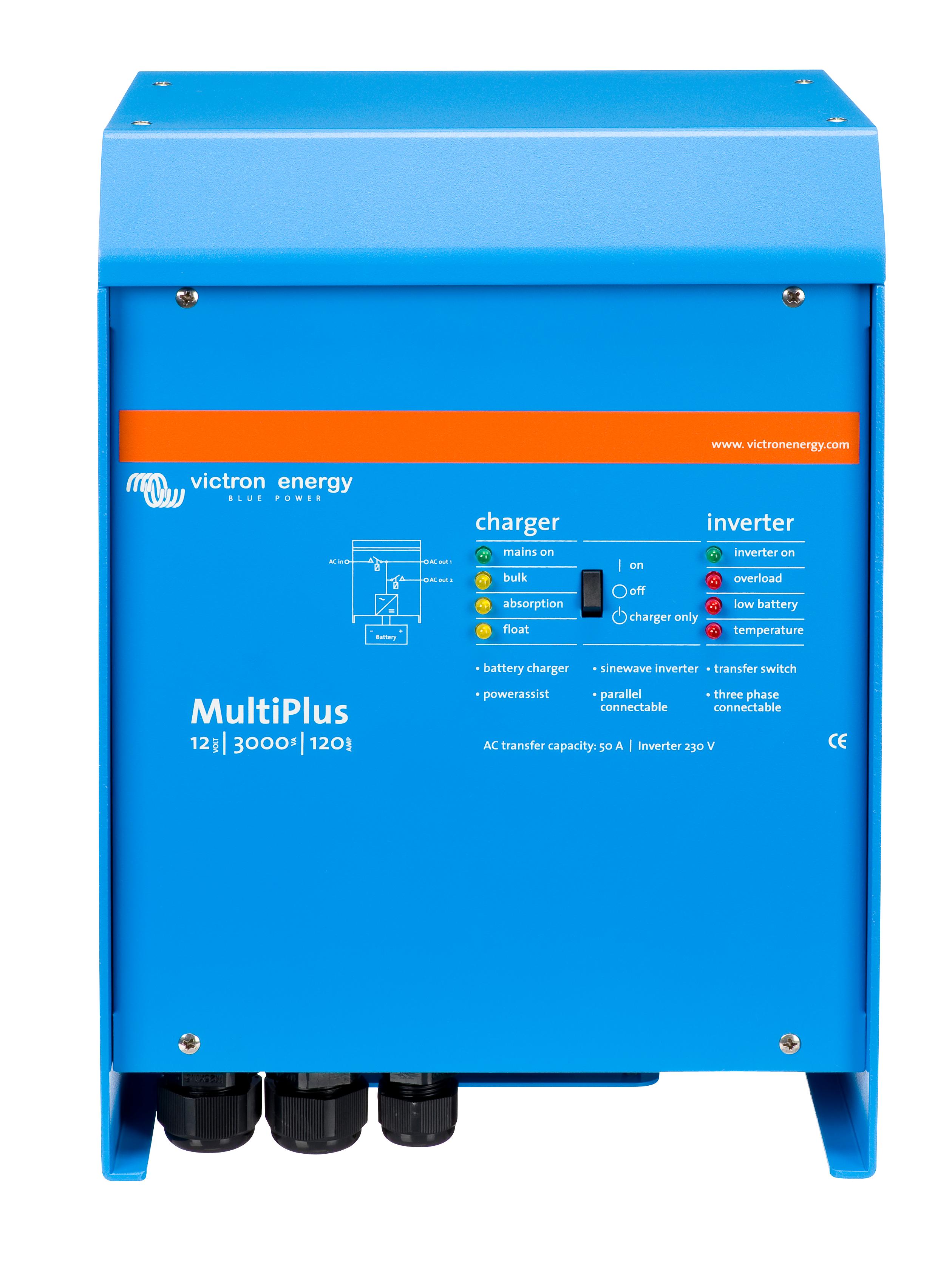

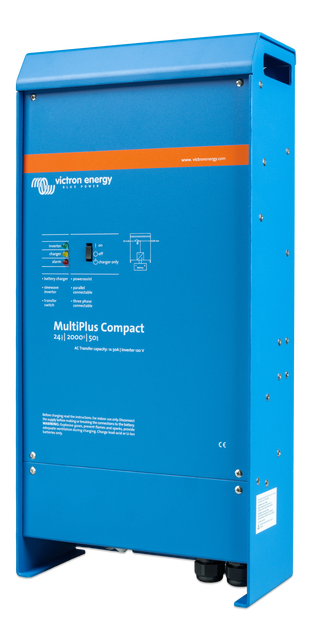

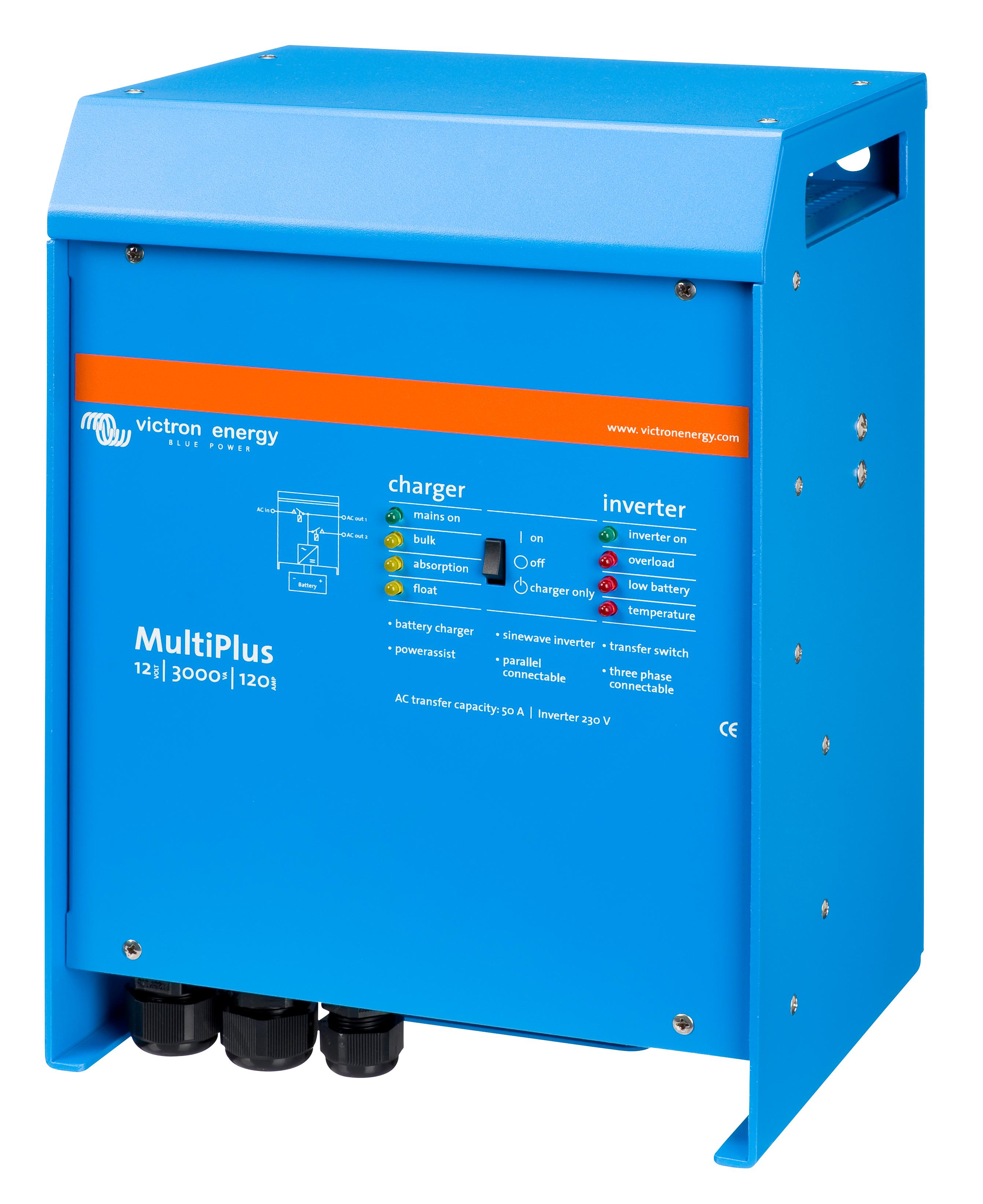

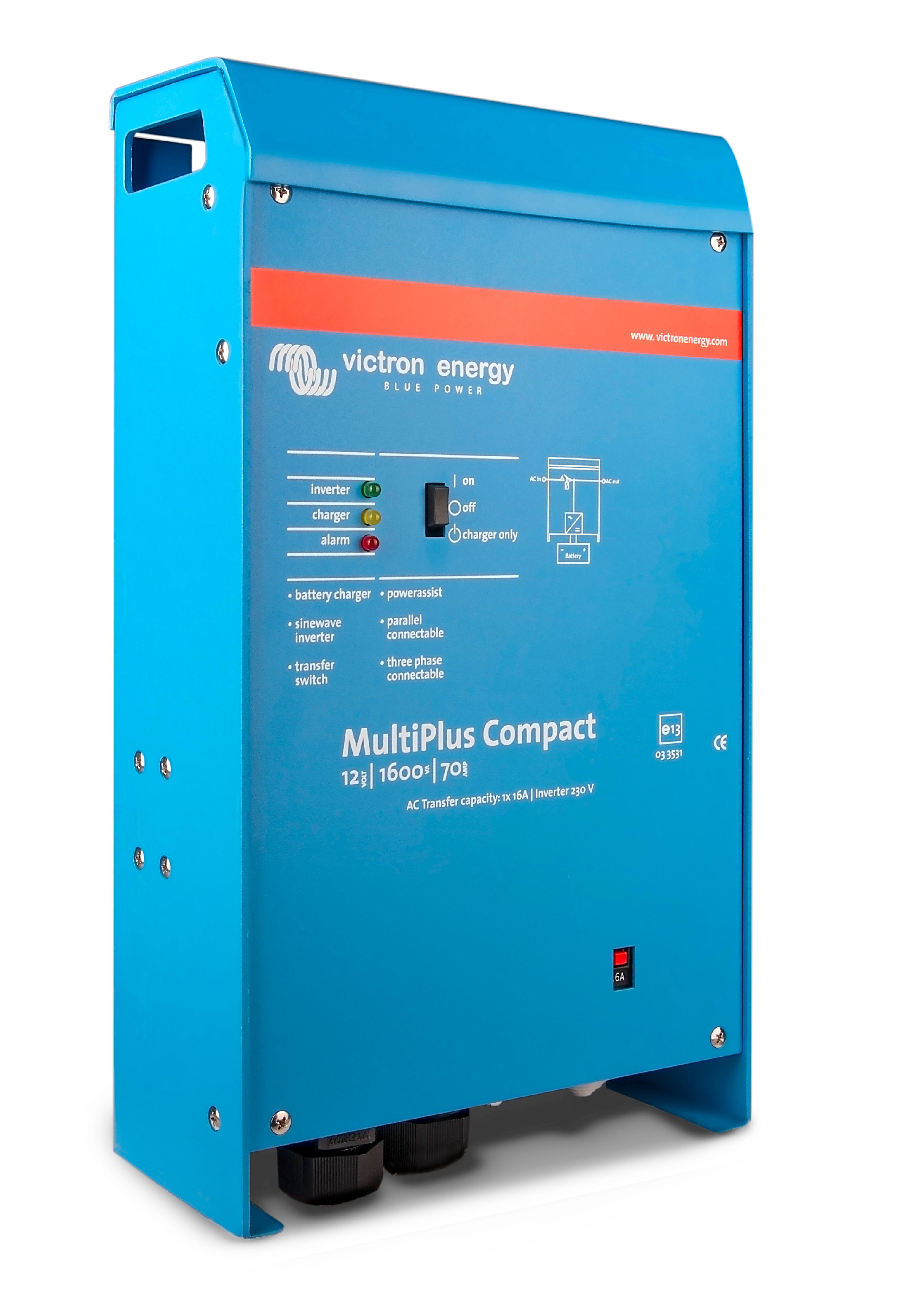

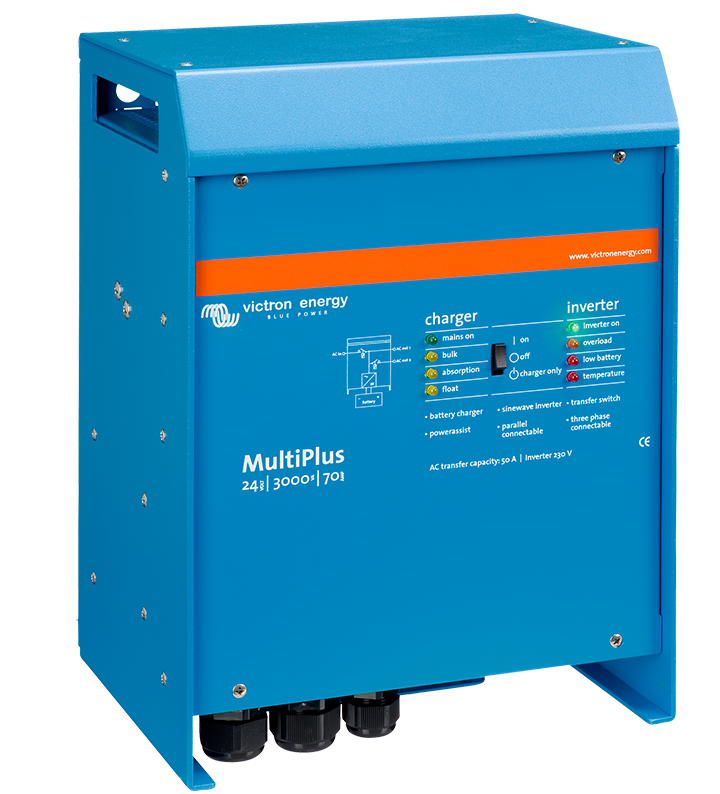

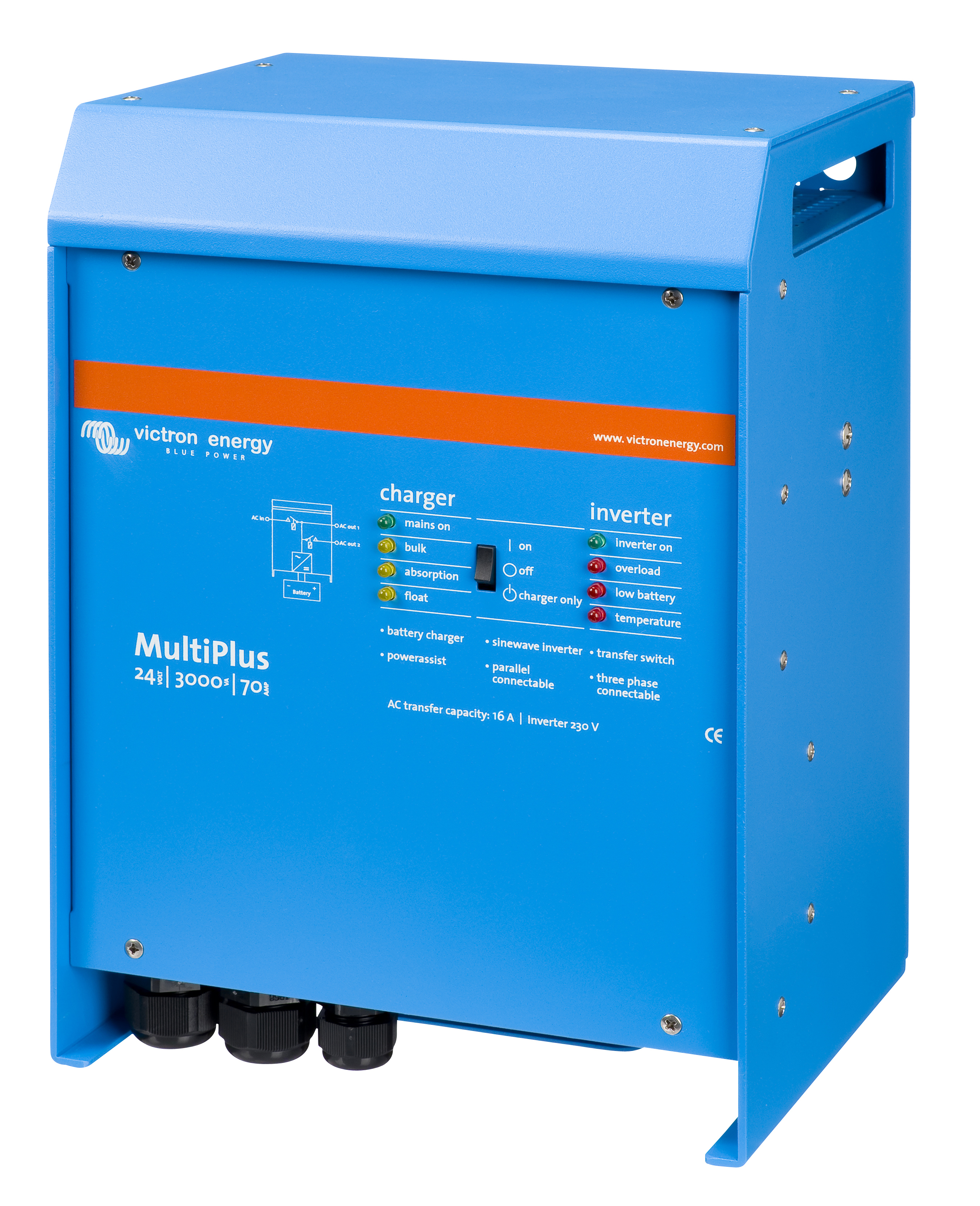

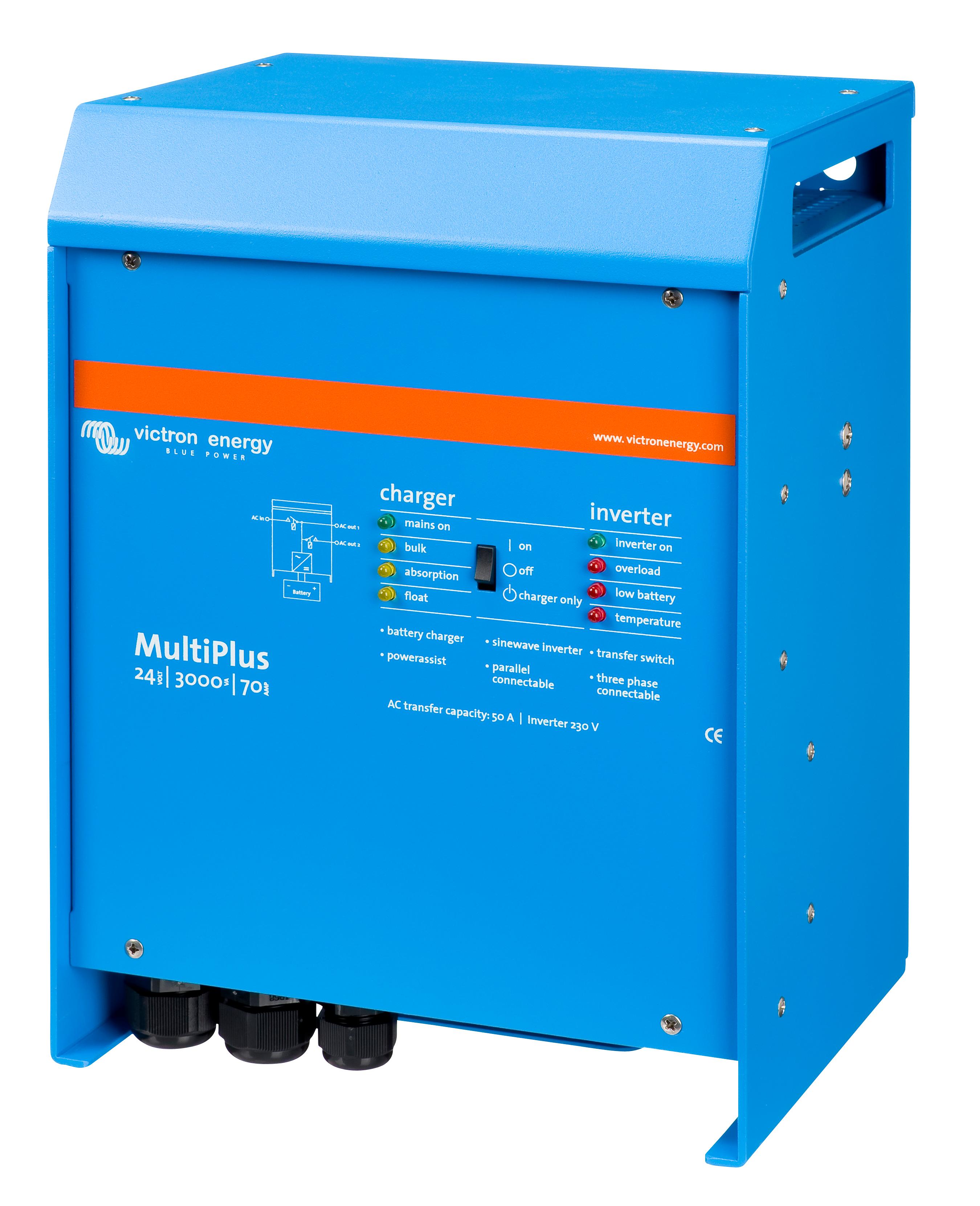

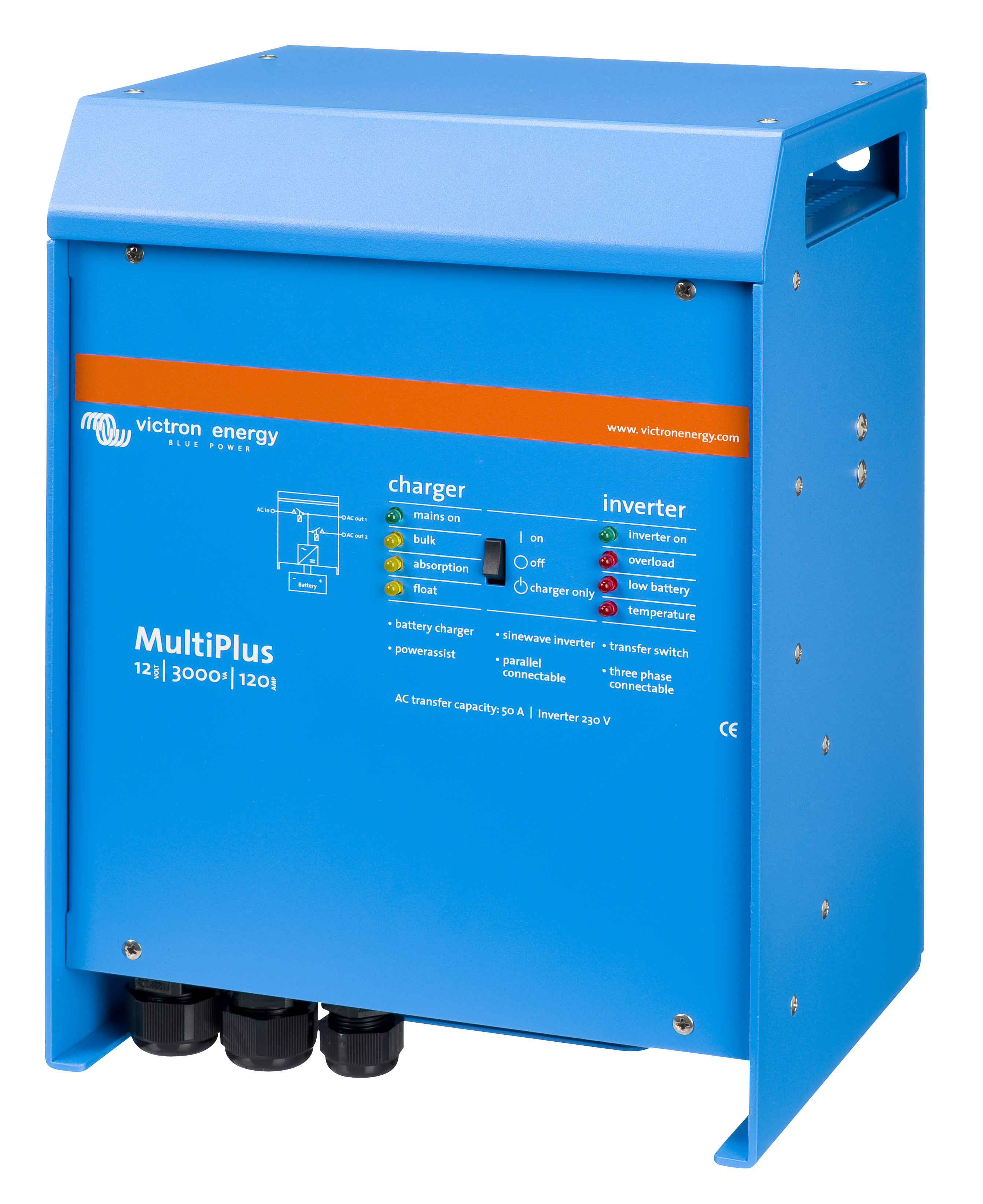

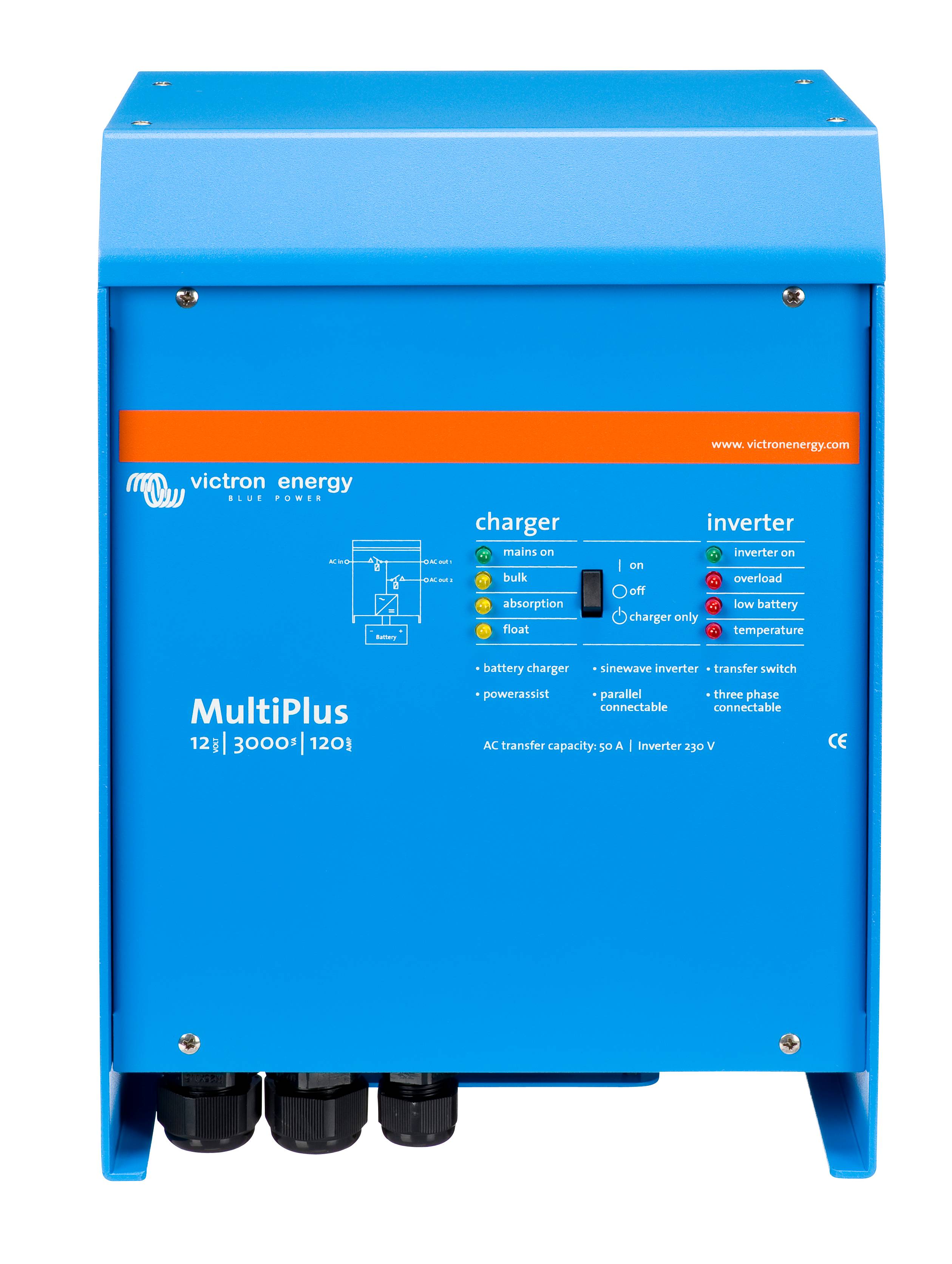

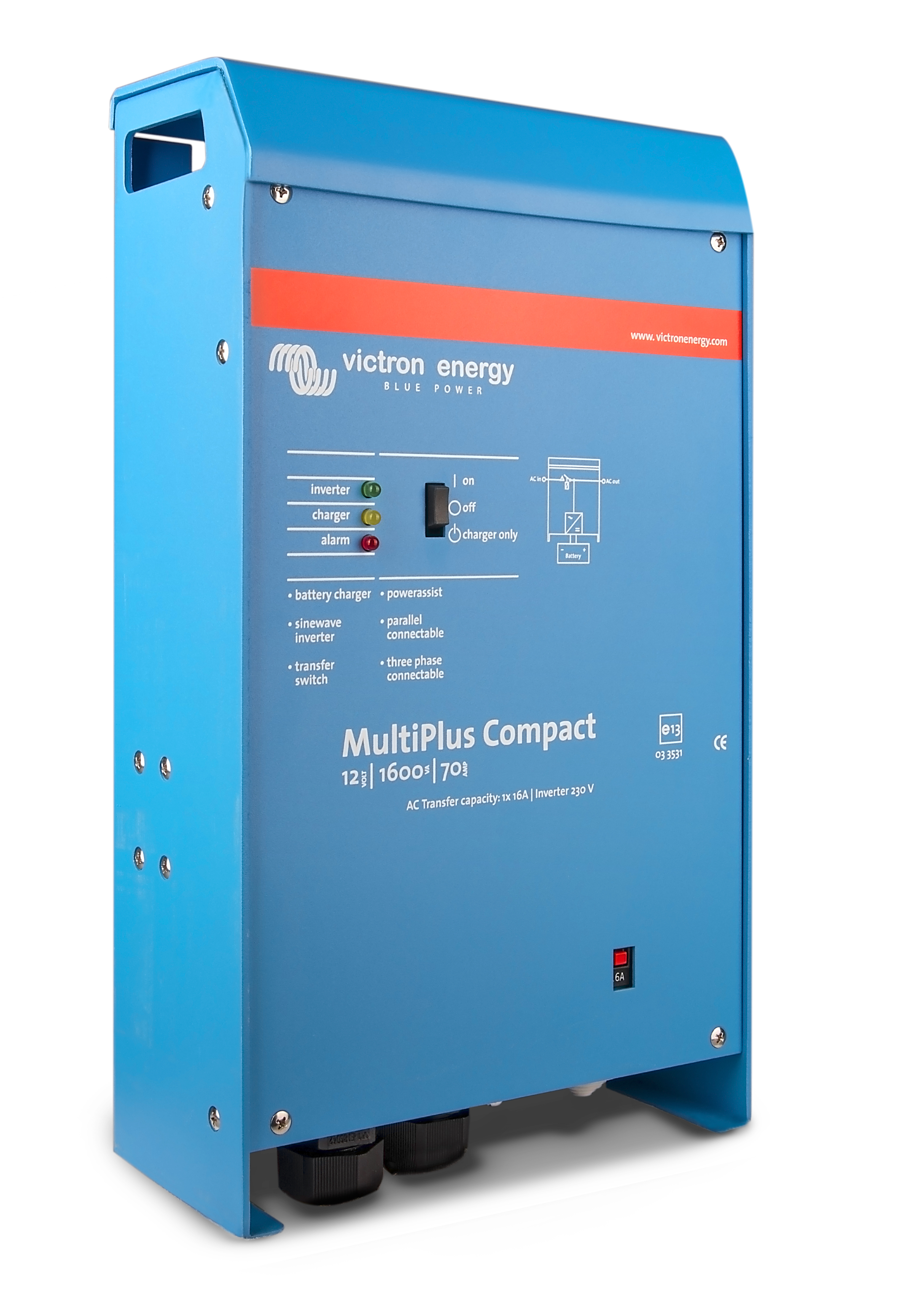

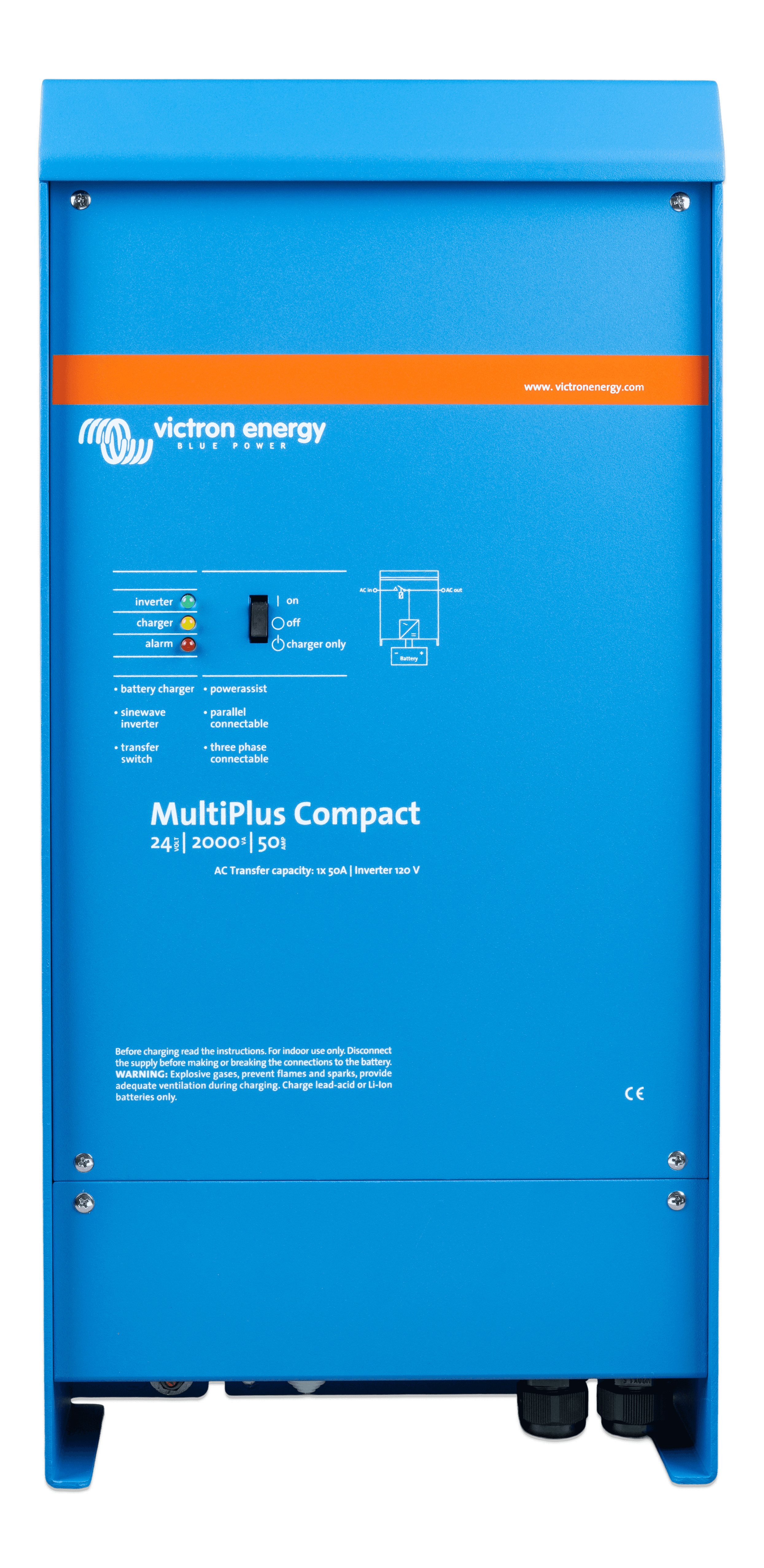

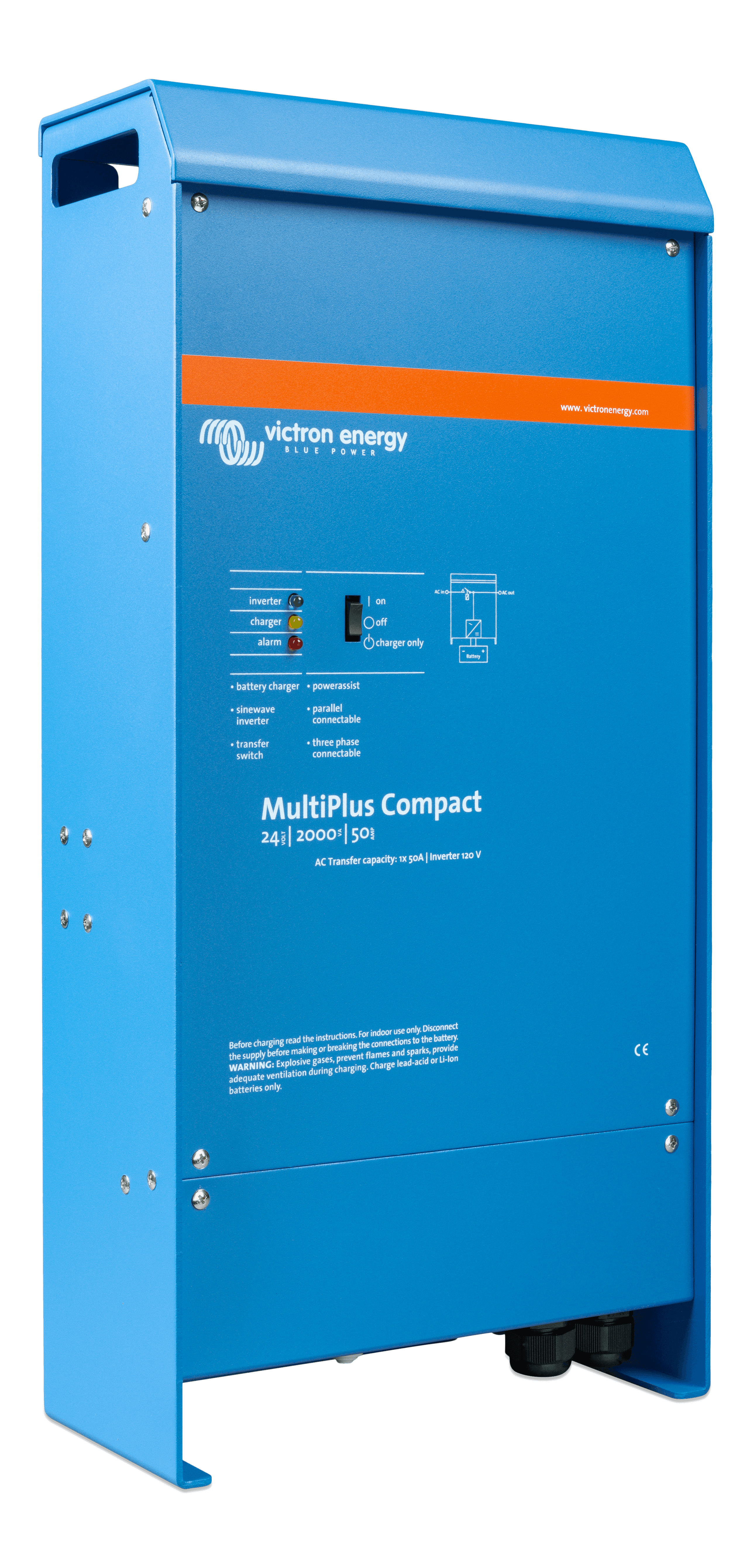

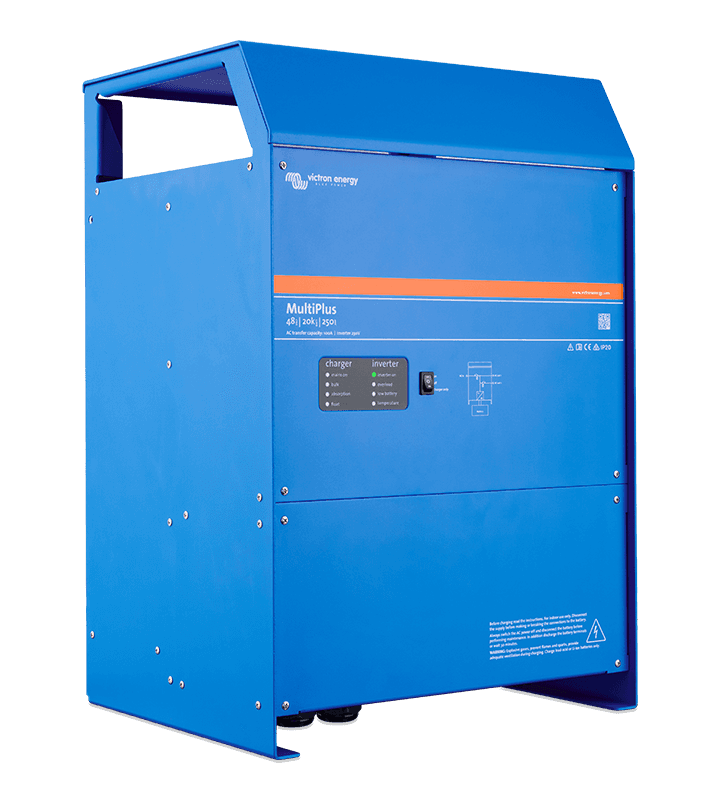

MultiPlus

The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.

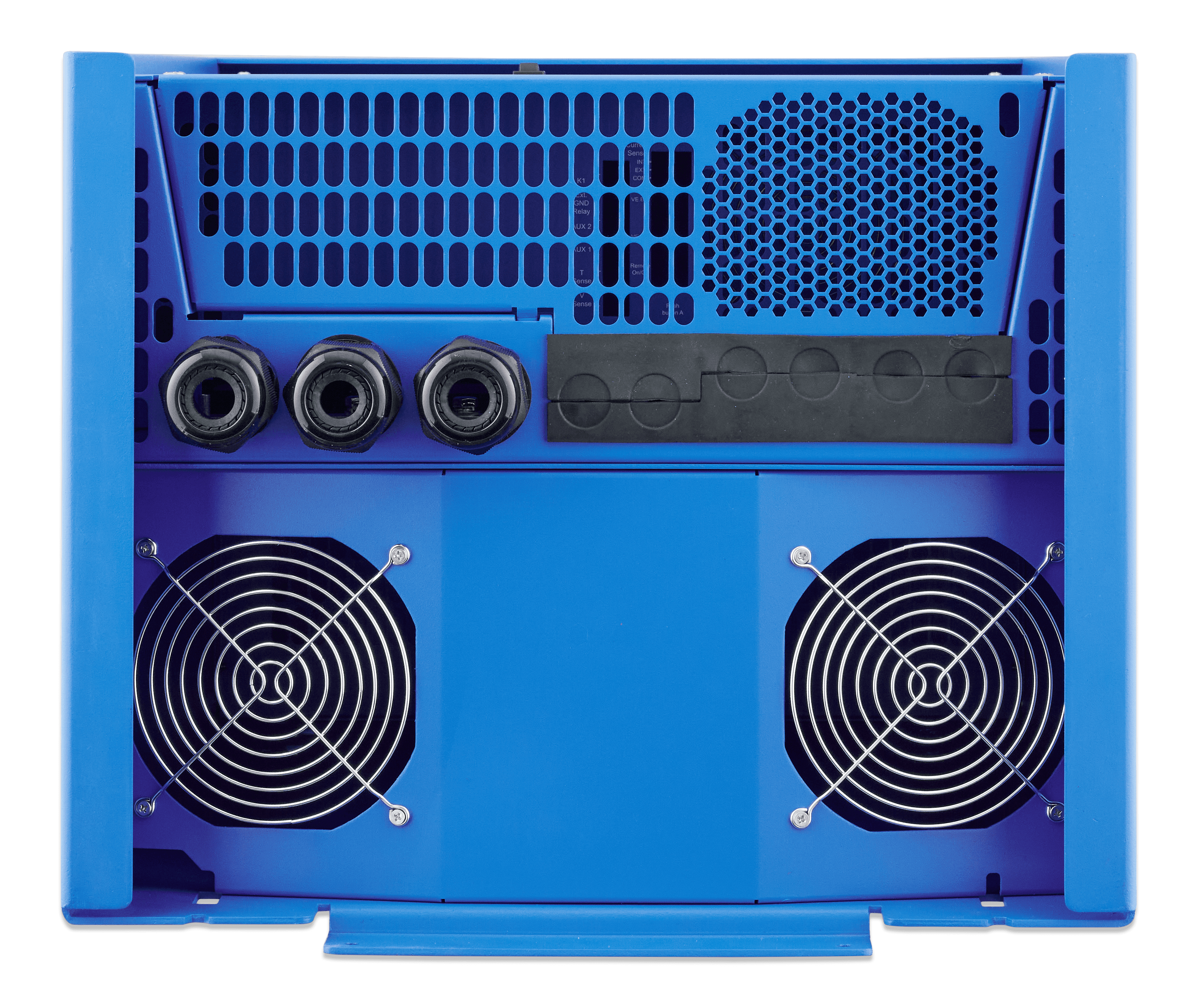

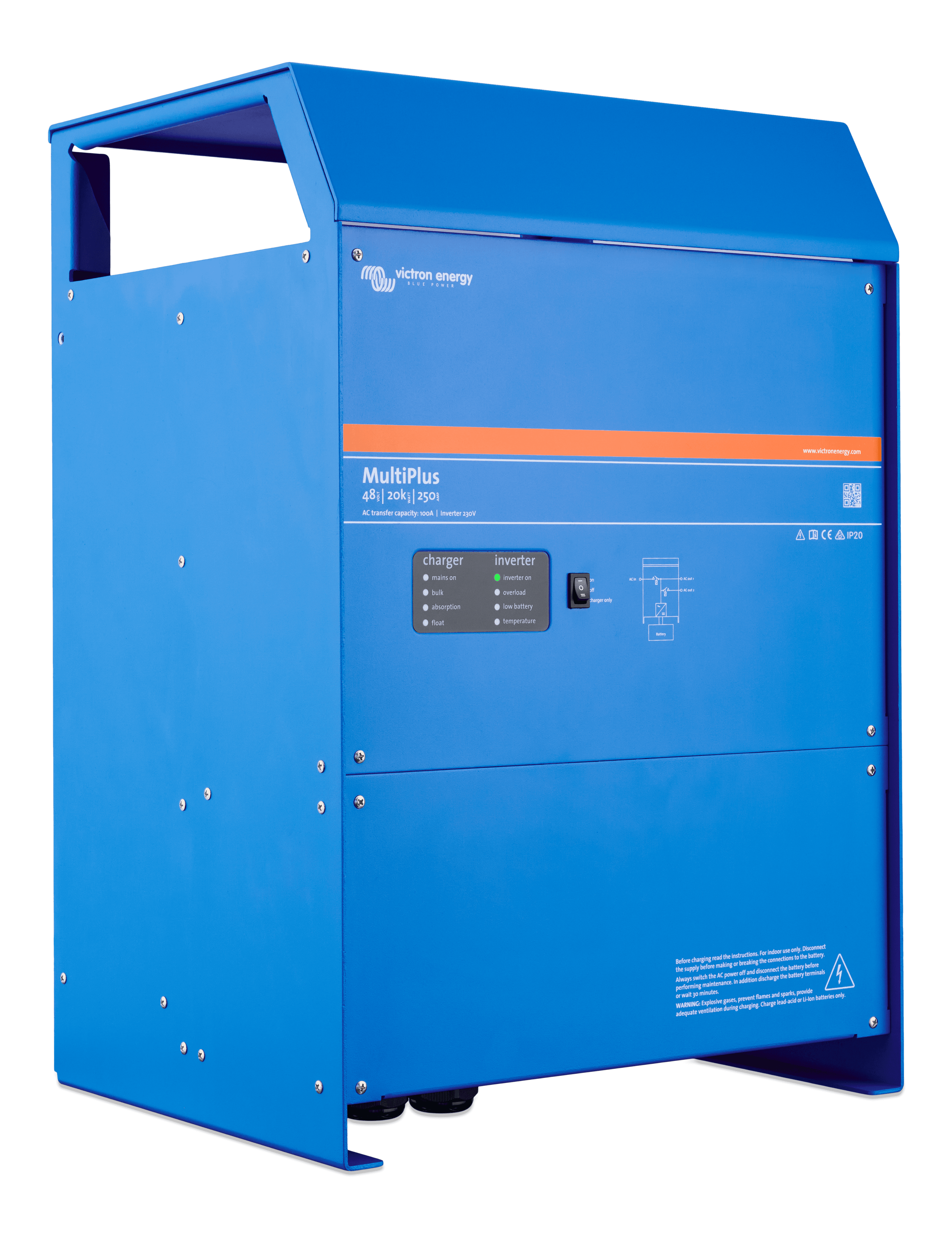

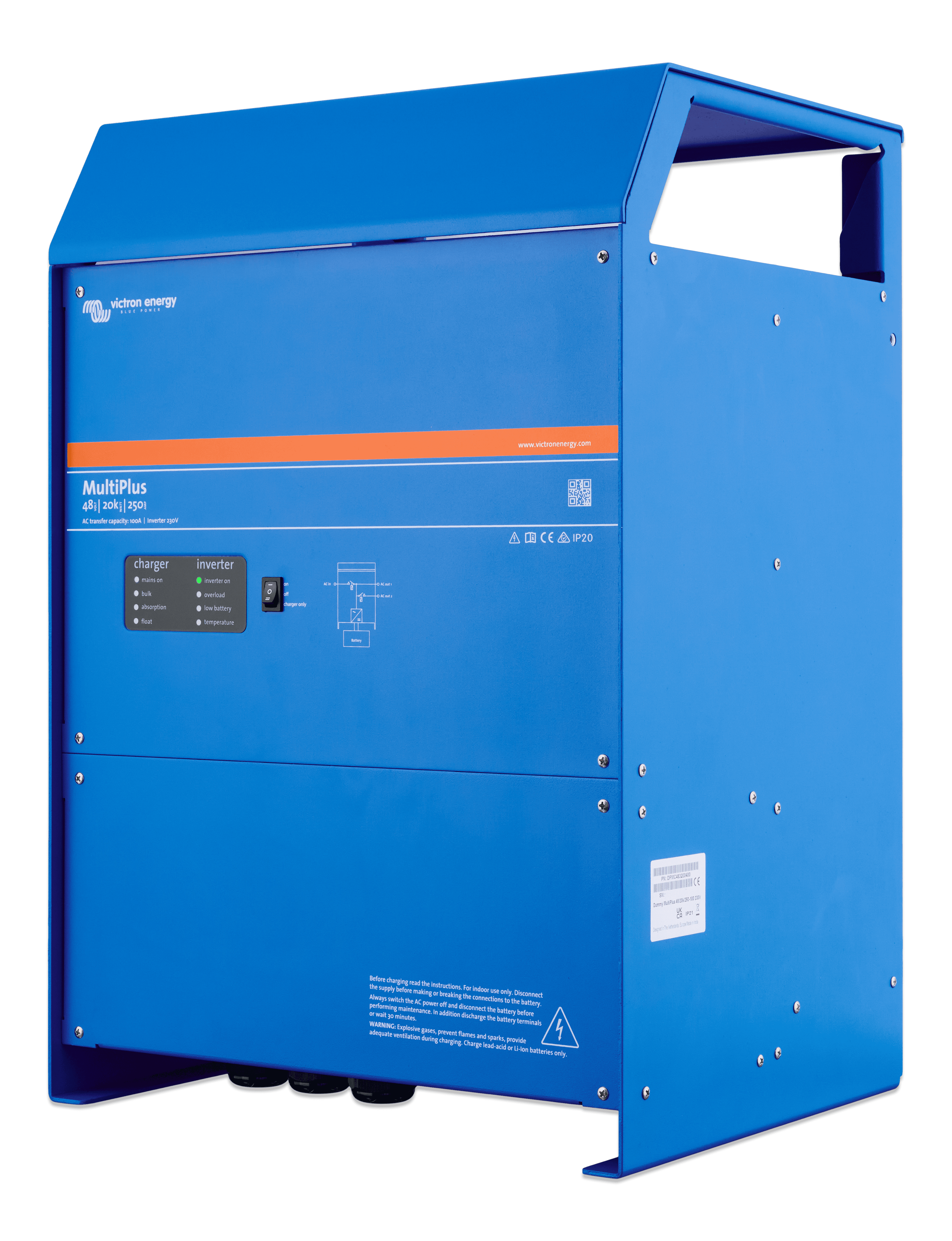

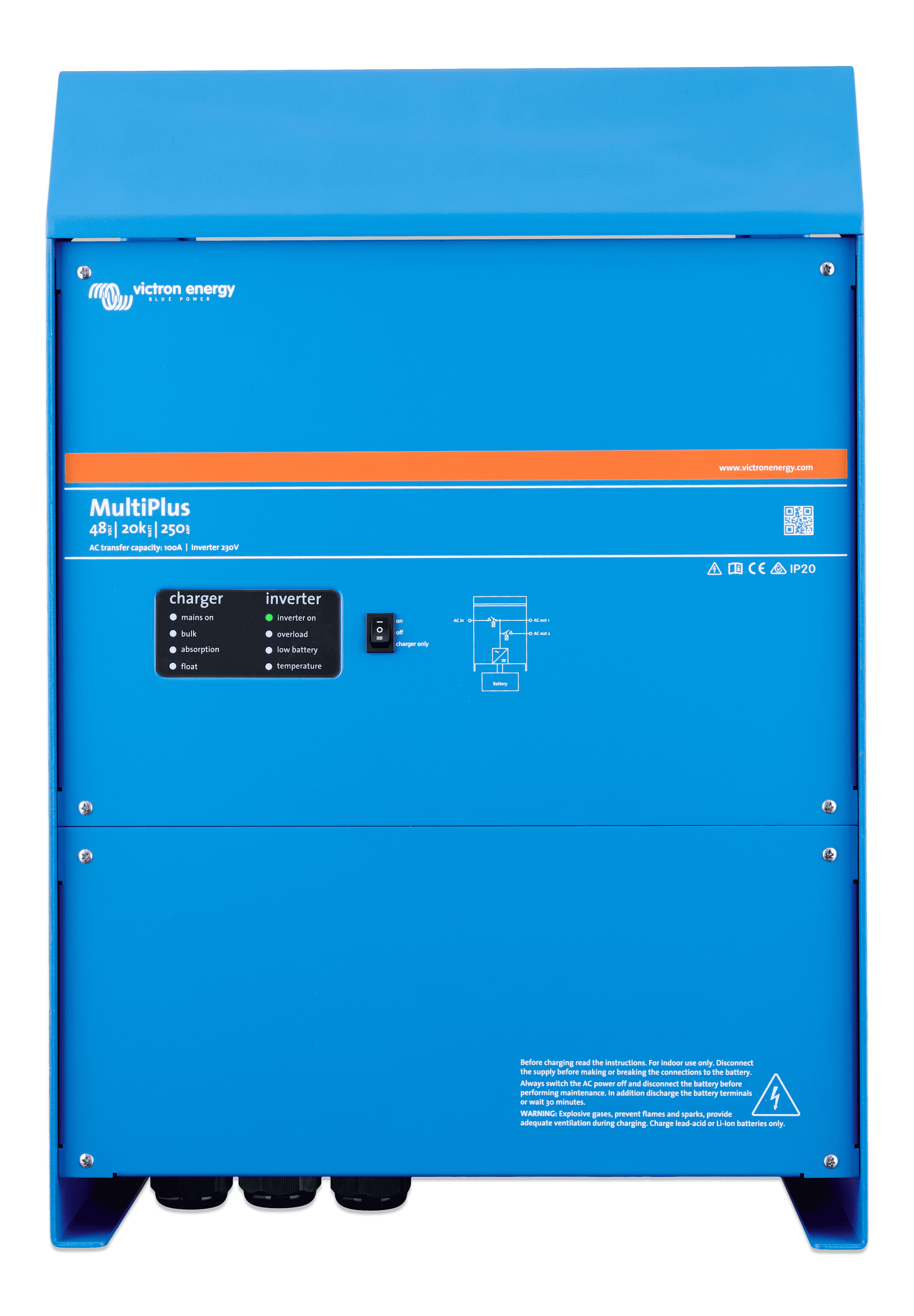

New model: MultiPlus 20k

Models:

800VA, 1200VA, 1600VA, 2000VA, 3000VA, 5000VA, 20kW

Where to buy

Year warranty

World-wide support

About thisproduct

New model: MultiPlus 20k

Unique PowerAssist feature

The MultiPlus will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

Uninterrupted AC power (UPS function)

In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Virtually unlimited power thanks to parallel operation

Up to 4 Multis can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.

Remote Monitoring and Control

When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backupgenerator and more…

Product specifications

Filters

27 Models

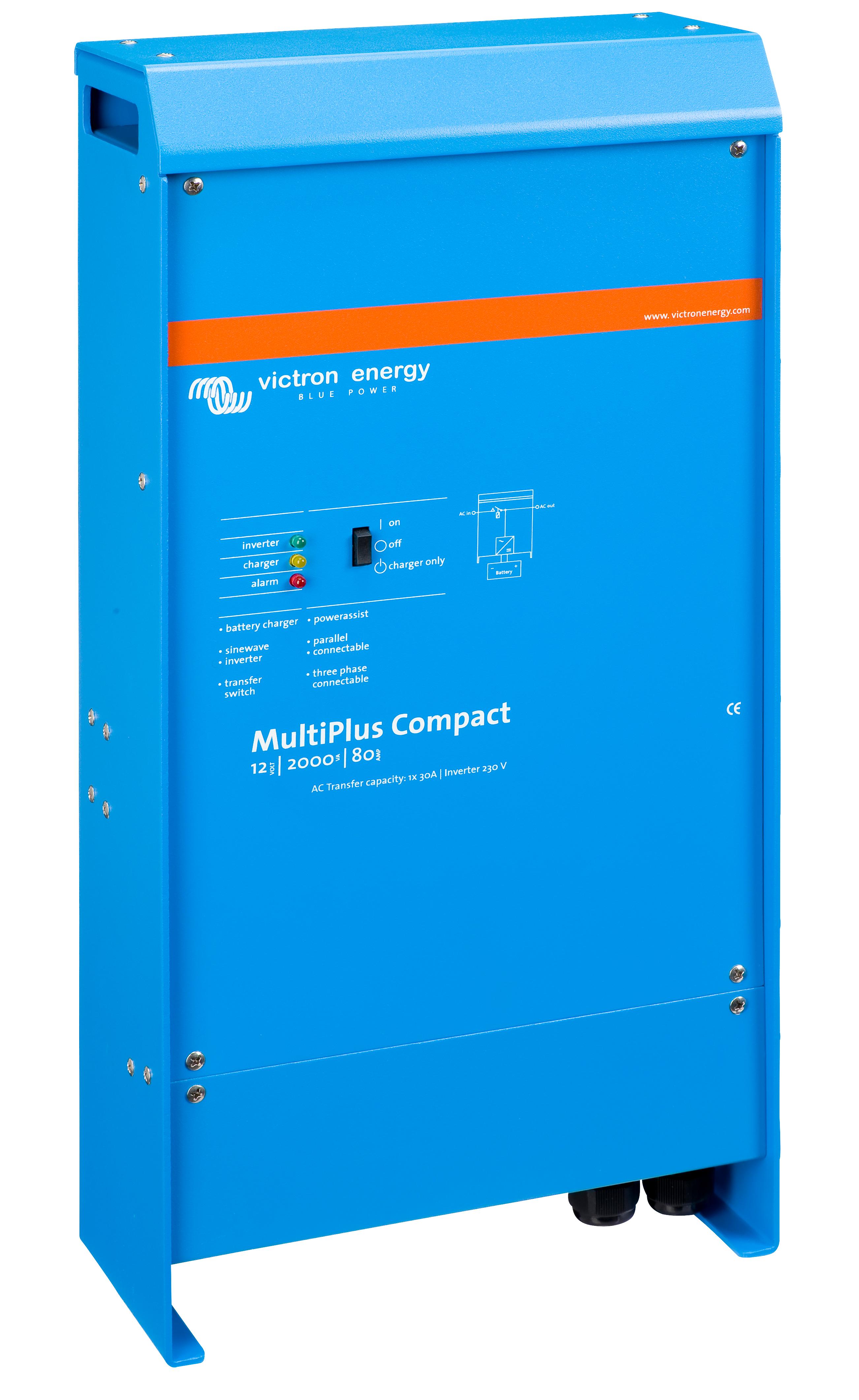

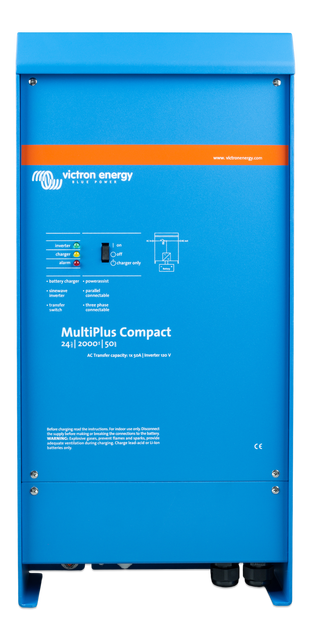

Model	MultiPlus Compact 12/2000/80-30 230V VE.Bus	MultiPlus48/3000/35-16 230V VE.Bus	MultiPlus 48/3000/35-50 230V VE.Bus	MultiPlus 48/5000/70-100 230V VE.Bus	MultiPlus 12/3000/120-50 120V VE.Bus	MultiPlus24/3000/70-50 120V VE.Bus	MultiPlus12/3000/120-50 230V VEBus	MultiPlus 12/3000/120-16 230V VE.Bus	MultiPlus 24/5000/120-100 230V VE.Bus	MultiPlus 12/3000/120-50 120V VE.Bus (UL 1741 & 458)	MultiPlus 24/3000/70-50 120V VE.Bus (UL 1741 & 458)	MultiPlus 24/3000/70-16 230V VE.Bus	MultiPlus 24/3000/70-50 230V VE.Bus	MultiPlus Compact 12/2000/80-50 120V VE.Bus (UL 458)	MultiPlus Compact 24/2000/50-30 230V VE.Bus	MultiPlus Compact 24/2000/50-50 120V VE.Bus	MultiPlus Compact 24/1600/40-16 230V VE.Bus	MultiP.C 12/1200/50-16 230V VE.Bus	MultiP.C 24/1600/40-16 230V VE.Bus	MultiPlus Compact 12/1600/70-16 230V VE.Bus	MultiPlus Compact 12/1200/50-16 230V VE.Bus	MultiP.C 12/1600/70-16 230V VE.Bus	MultiPlus Compact 12/800/35-16 230V VE.Bus	MultiPlus 48/20k/250-100 230V	MultiPlus 48/3000/35-16 230V VE.Bus	MultiPlus 12/2k/100-32 230V VE.Bus	MultiPlus 12/3000/120-50 230V VE.Bus

Model

Documentation

Article code

CMP122200000

PMP483020001

PMP483021010

PMP485021010

PMP123021102

PMP243021102

PMP123021010

PMP122300001

PMP245021010

PMP122301102

PMP242301102

PMP242300001

PMP242301011

CMP122200102

CMP242200000

CMP242200100

CMP242160000

CMP121220000

CMP241620000

CMP122160000

CMP122120000

CMP121620000

CMP121800000

PMC483200400

PMP482300000

PMP122200010

PMP122301013

PowerControl & PowerAssist

Transfer switch

30 A

16 A

50 A

100 A

50 A

16 A

100 A

50 A

16 A

50 A

30 A

50 A

16 A

100 A

16 A

Inverter

Cont. output power at 25 C (3)

2,000 VA

3,000 VA

5,000 VA

3,000 VA

5,000 VA

3,000 VA

2,000 VA

1,600 VA

1,200 VA

800 VA

3,000 VA

Cont. output power at 25 C

1,600 W

2,400 W

4,000 W

2,400 W

4,000 W

2,400 W

1,600 W

1,300 W

1,000 W

700 W

20,000 W

2,400 W

Peak power

4,000 W

6,000 W

10,000 W

6,000 W

10,000 W

6,000 W

4,000 W

3,000 W

2,400 W

1,600 W

25,000 W

6,000 W

Charger

Max. battery charge current

80 A

35 A

70 A

120 A

70 A

120 A

70 A

80 A

50 A

40 A

70 A

50 A

35 A

250 A

35 A

General

VE.Bus communication port

Two RJ45 terminals

One RJ45 terminal, RJ45-spliter ASS030065510 to expand to two ports

Two RJ45 terminals

Enclosure

Battery connection

M8 bolts

M8 bolts (two for positive and two for negative connection)

M8 bolts

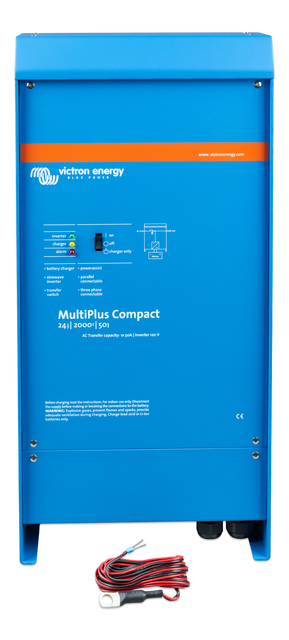

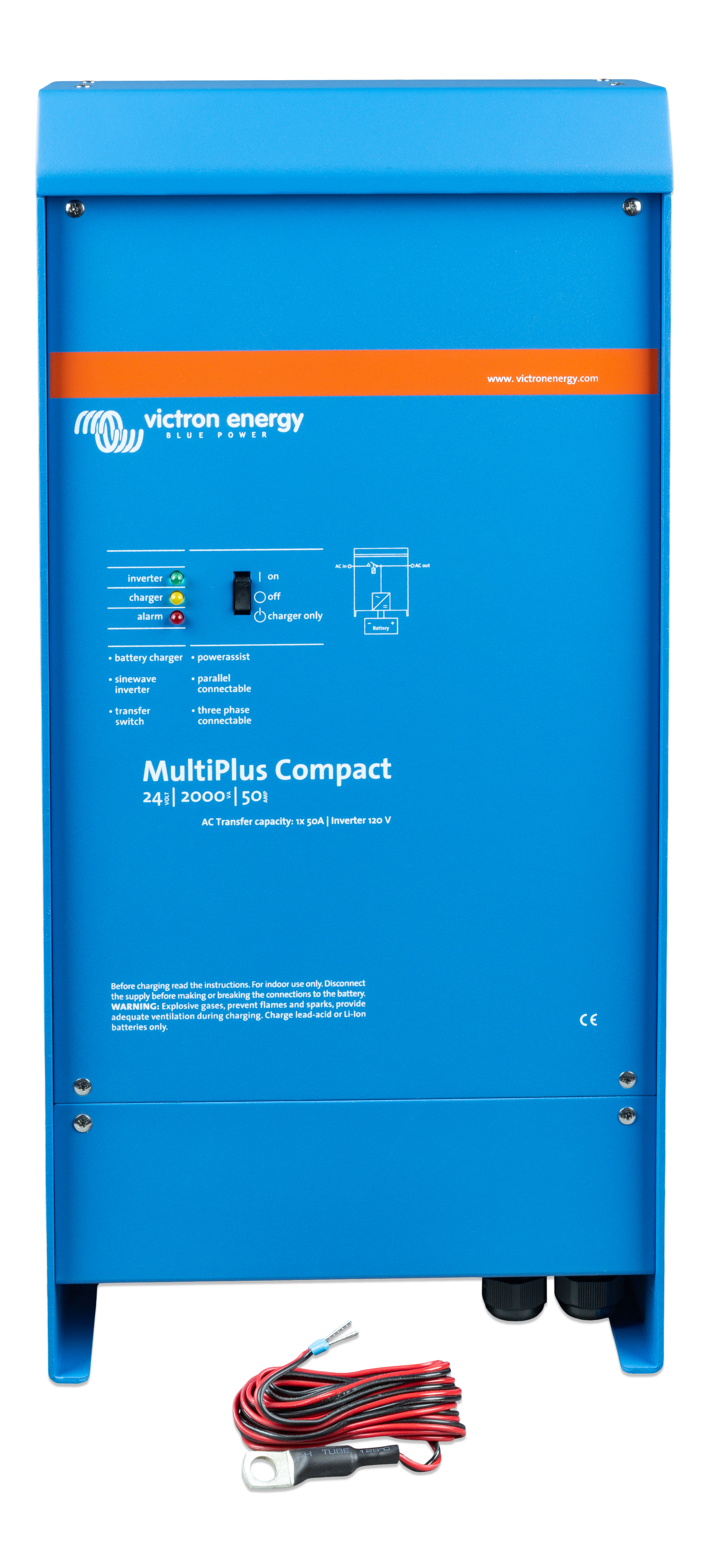

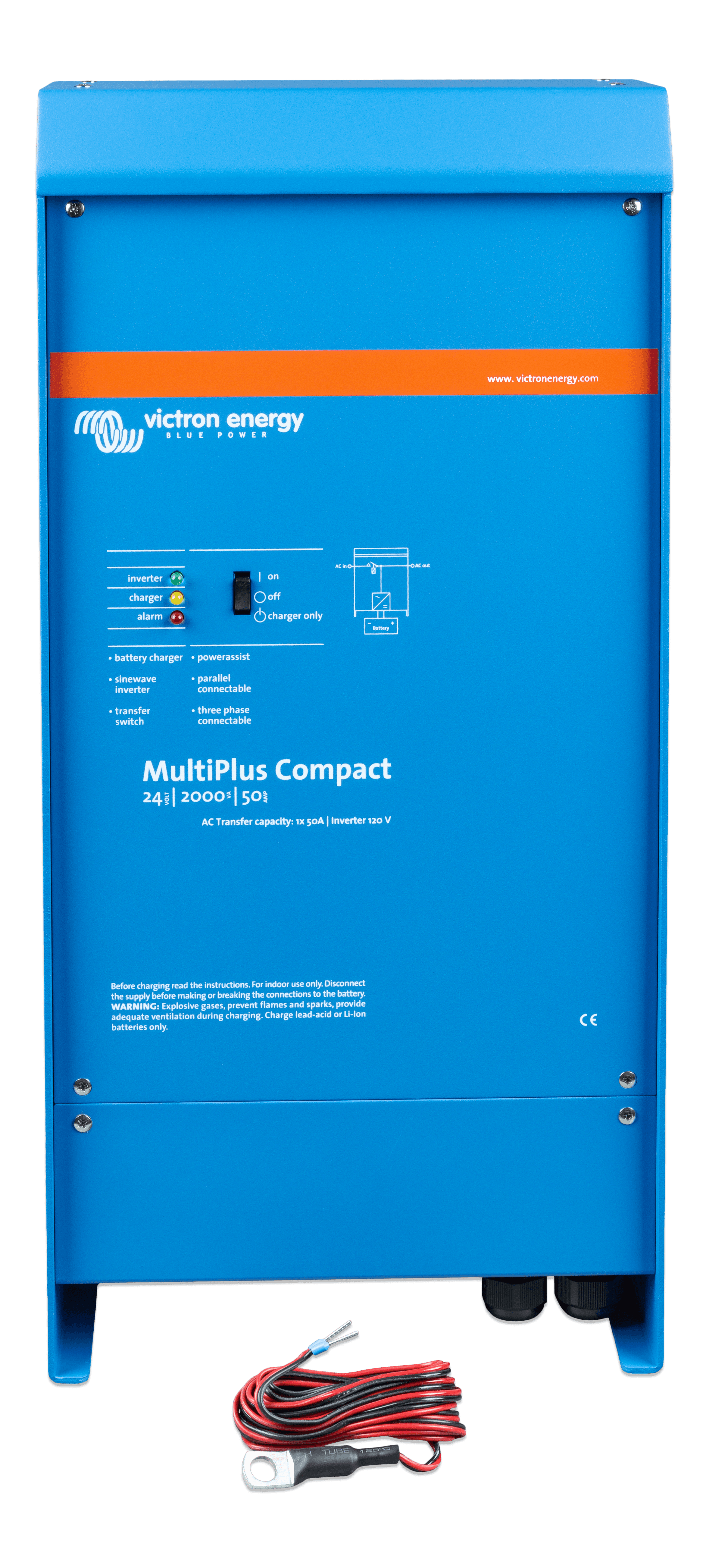

Red and black 1.5 meter cable

Red and black 1.5 meter cable with M8 eyelets

M8 bolts (two for positive and two for negative connection)

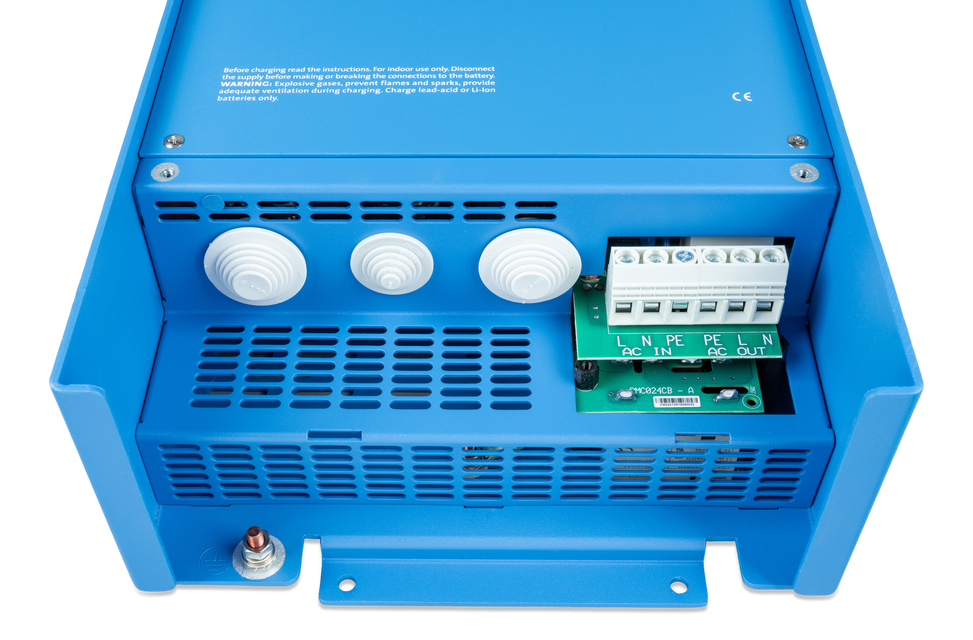

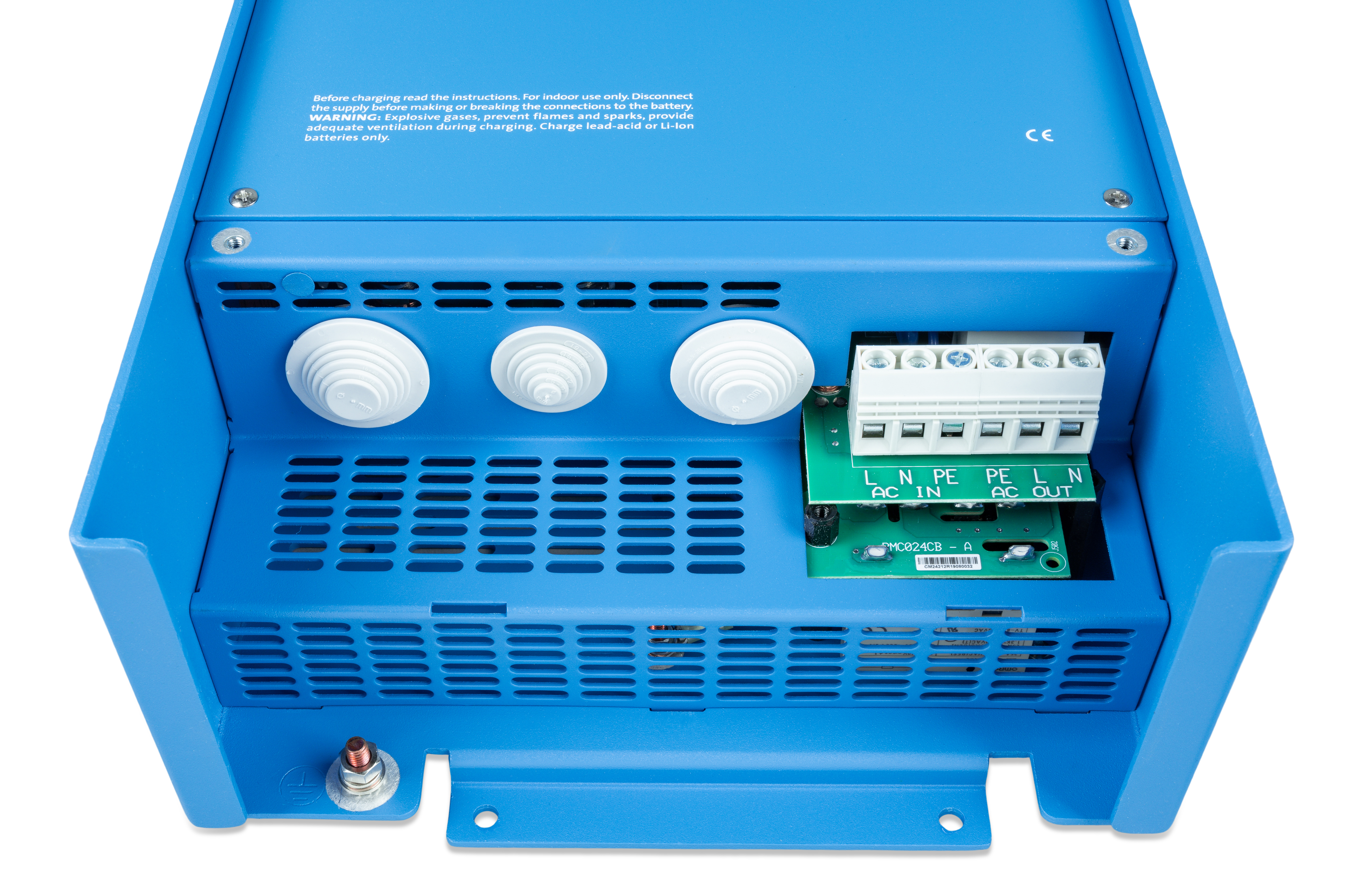

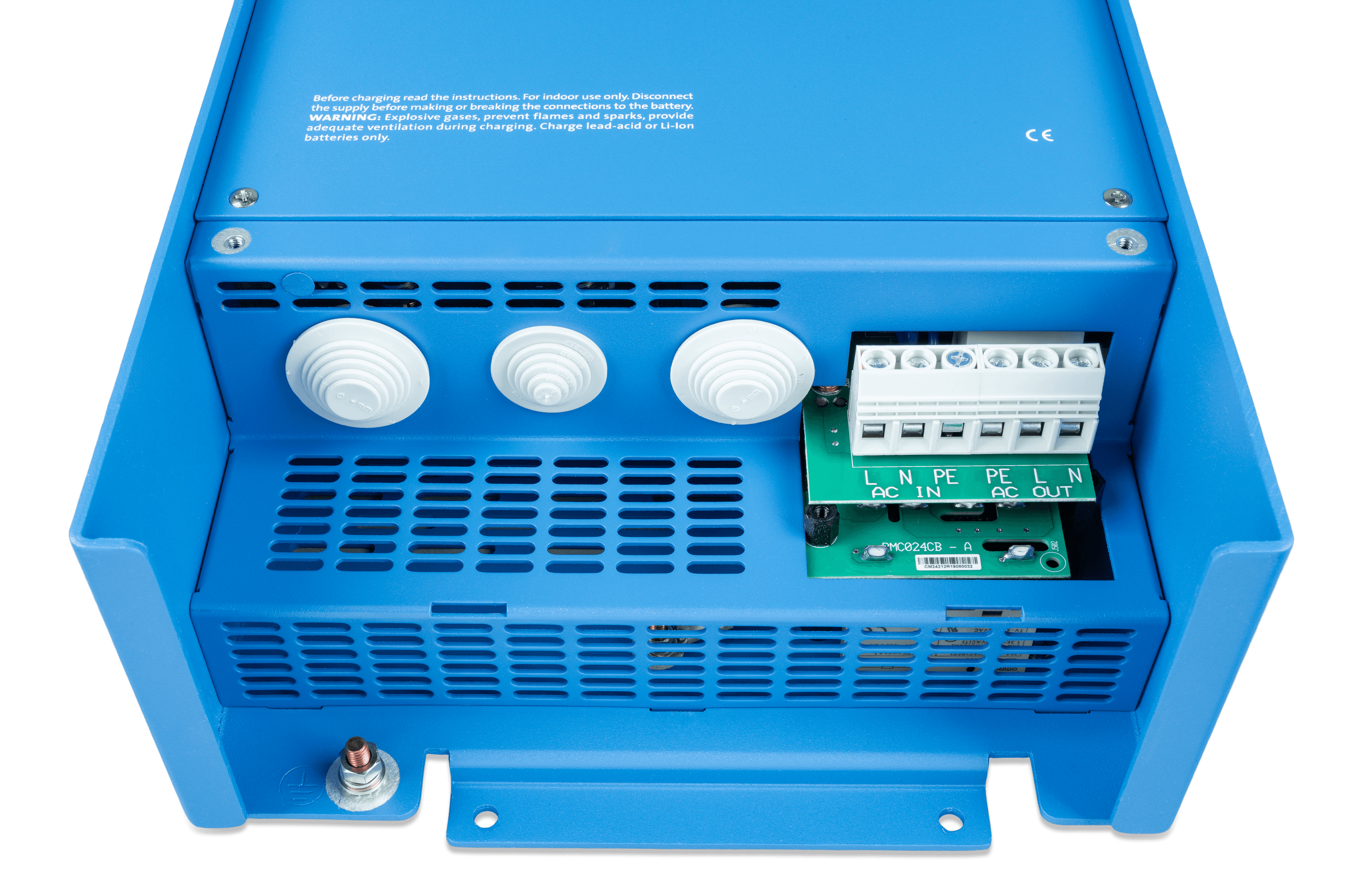

230-VAC Connection

Spring clamp
